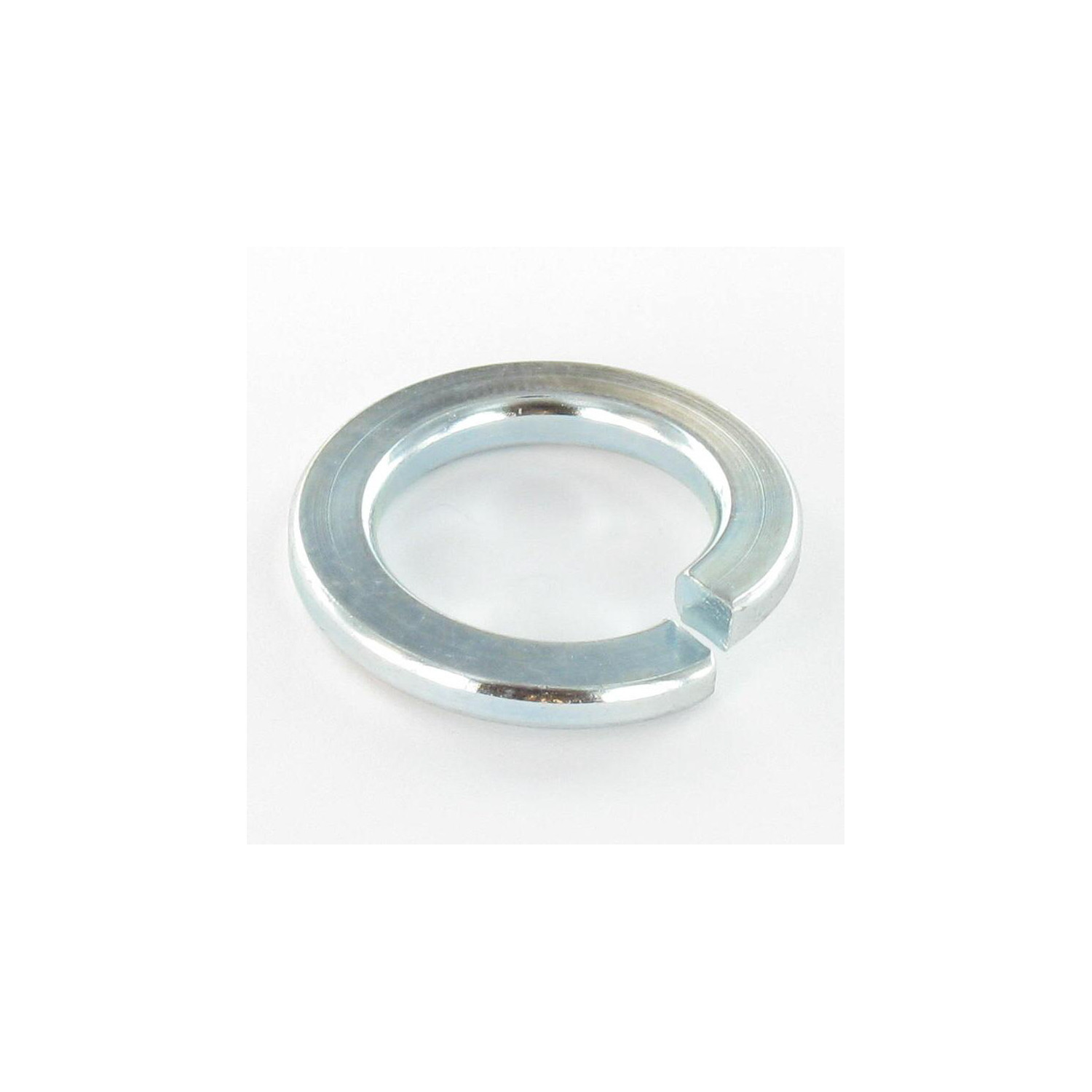

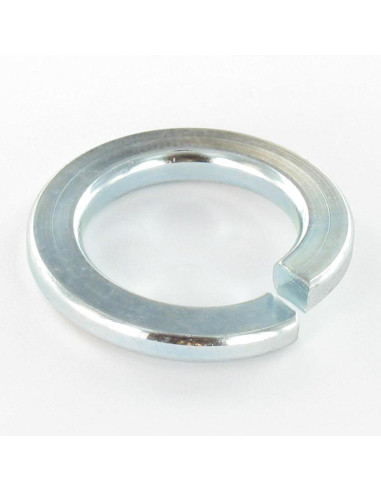

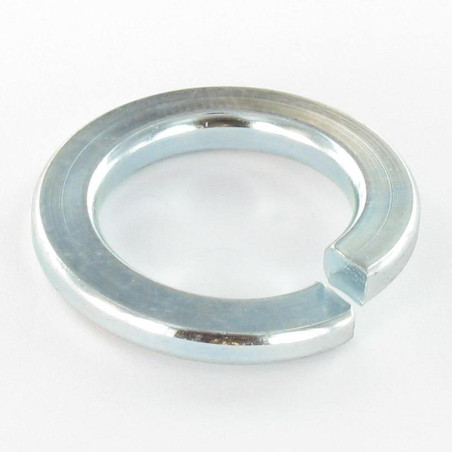

1 x Skiver Split lås for Skrue M8 elforzinket stål

Skiver Split lås for Skrue M8 elforzinket stål
Diameter = M8, Tykkelse = MM, Overfladebelã¦Gning = Zink belagt, Materiale = Stål, Norm = DIN 127 B

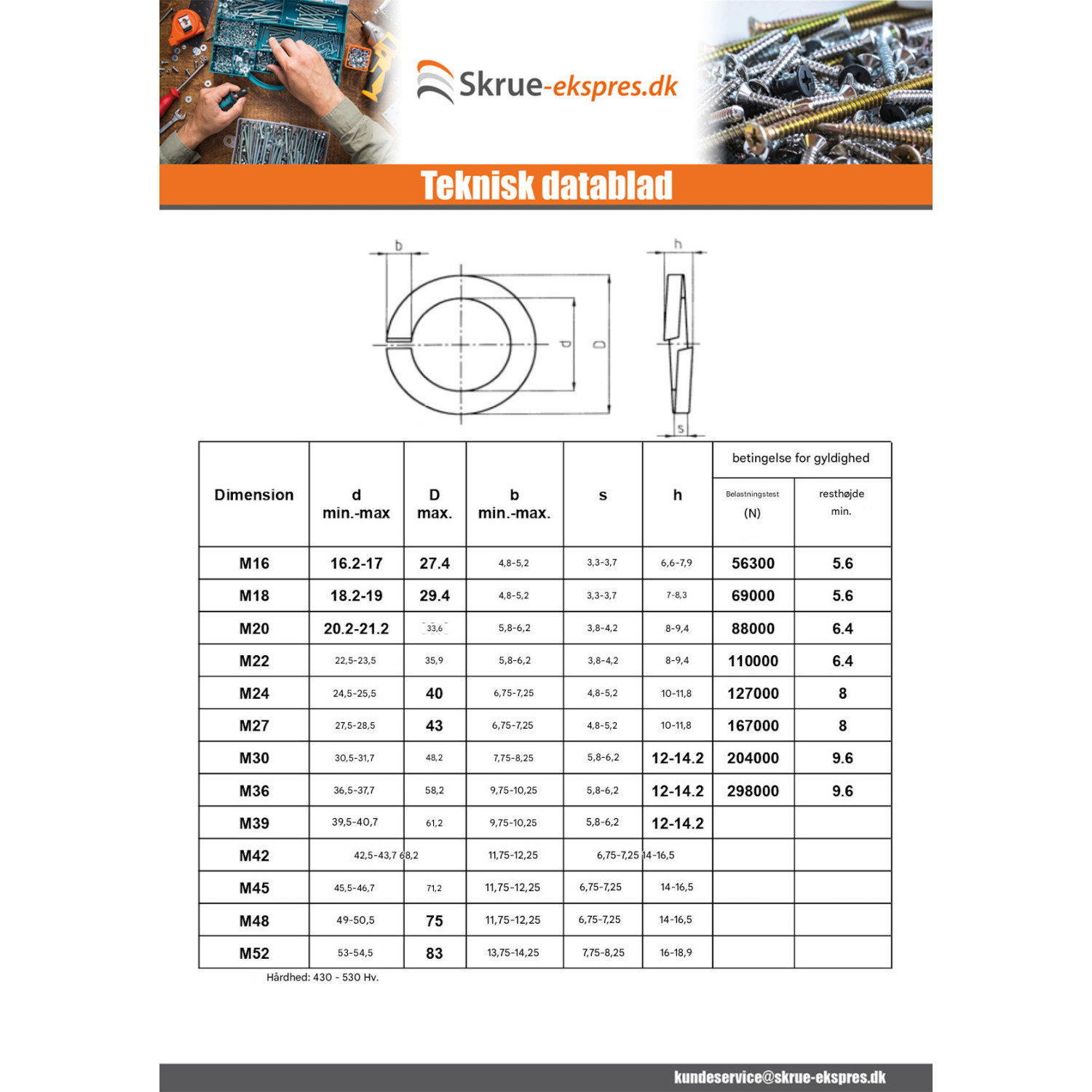

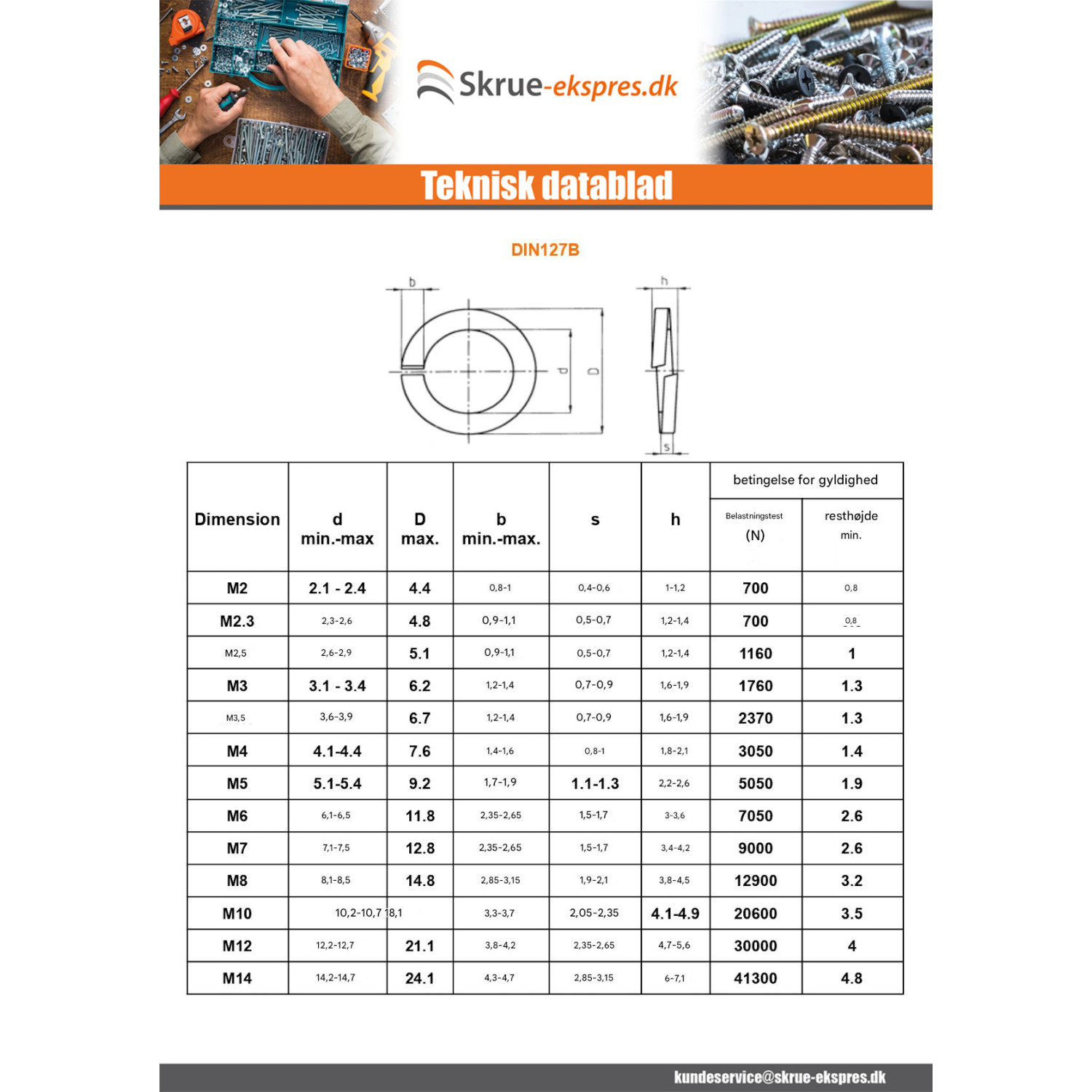

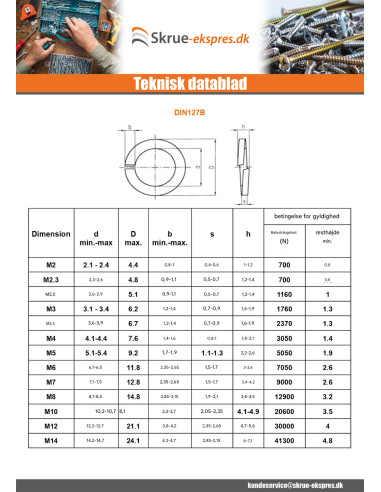

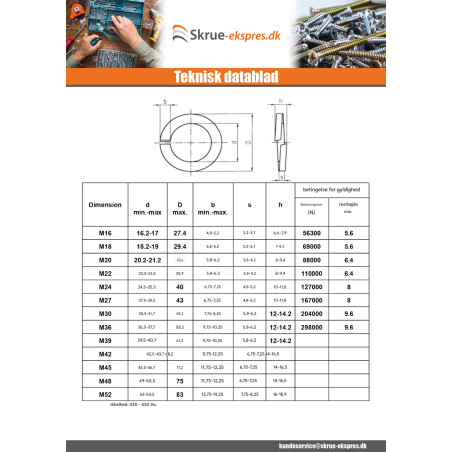

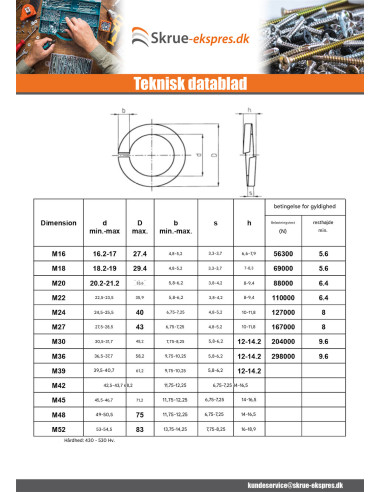

Vejledende dimensioner (i mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Indvendig diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Udvendig diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tykkelse	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7
