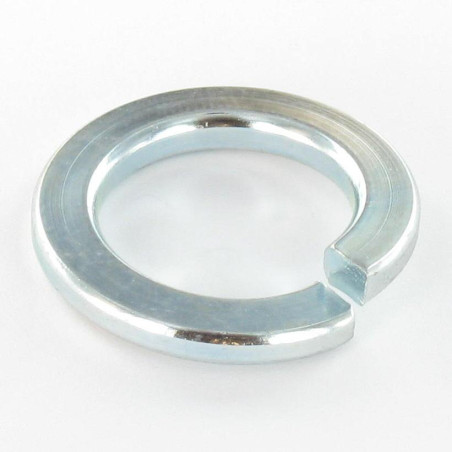

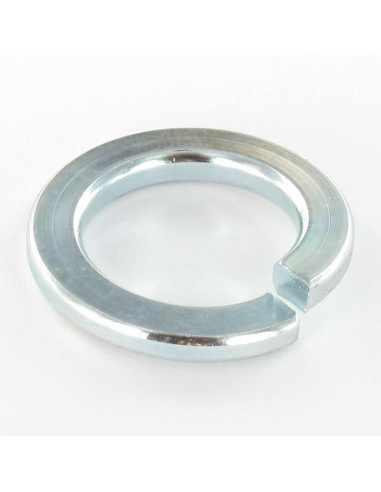

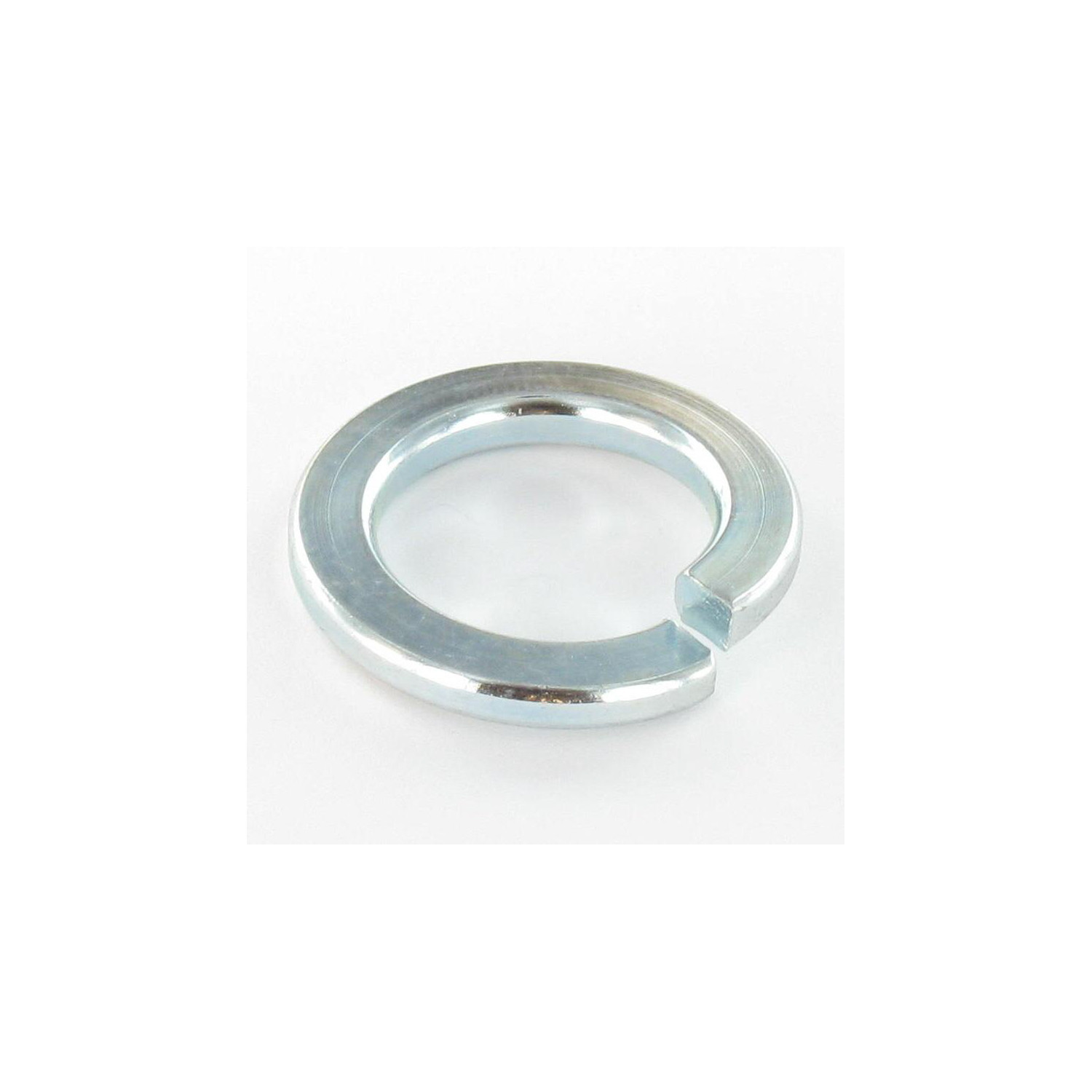

1 x Skiver Split lås for Skrue M10 elforzinket stål

Skiver Split lås for Skrue M10 elforzinket stål
Diameter = M10, Tykkelse = MM, Overfladebelã¦Gning = Zink belagt, Materiale = Stål, Norm = DIN 127 B, Erhverv = Landbruk

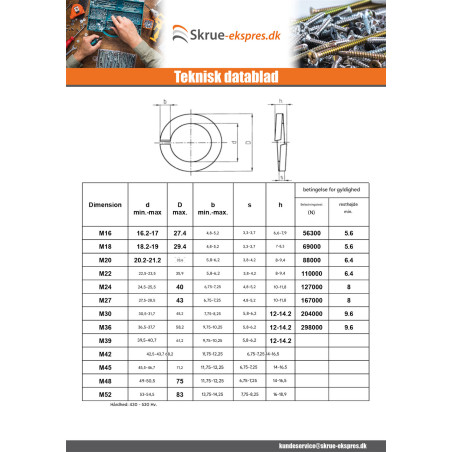

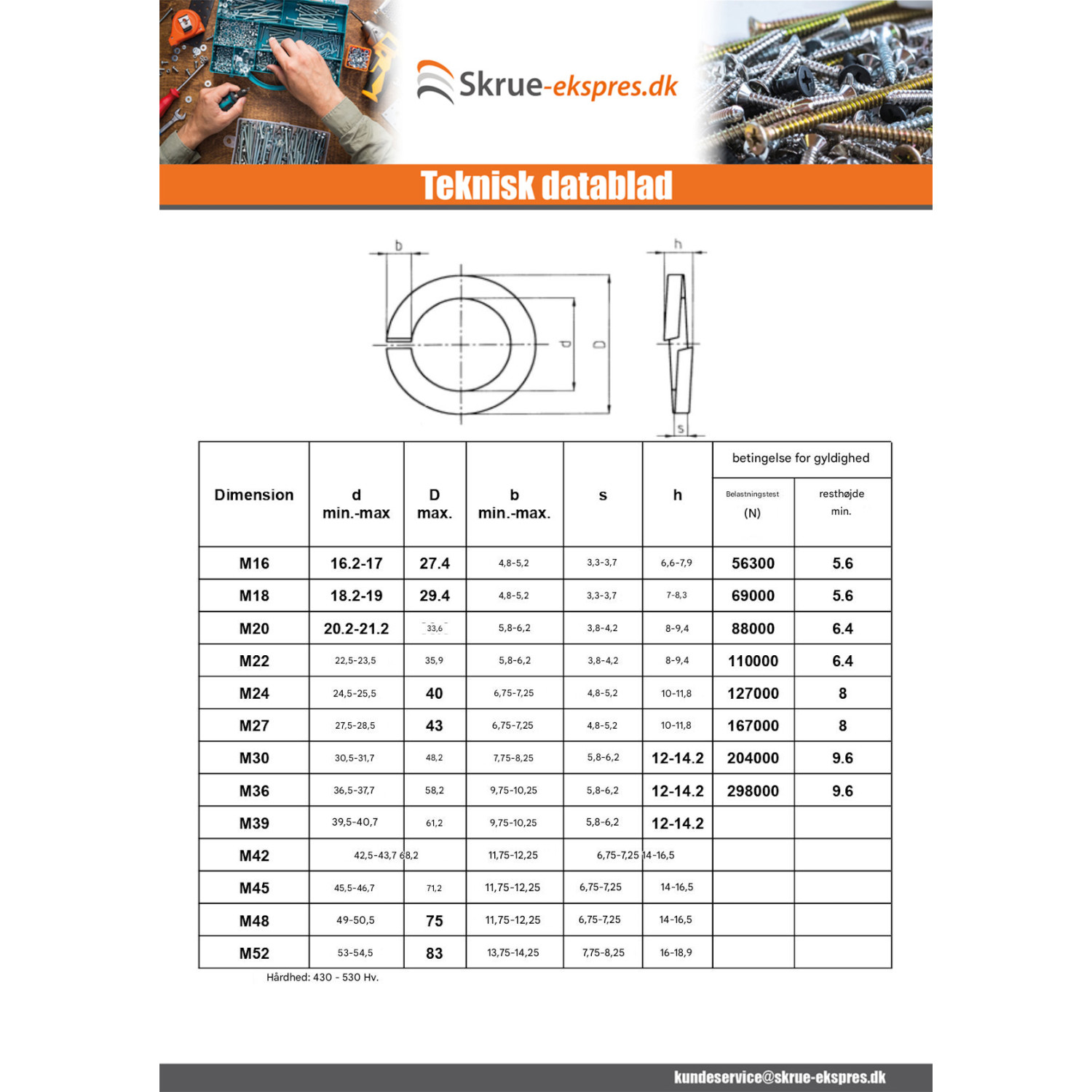

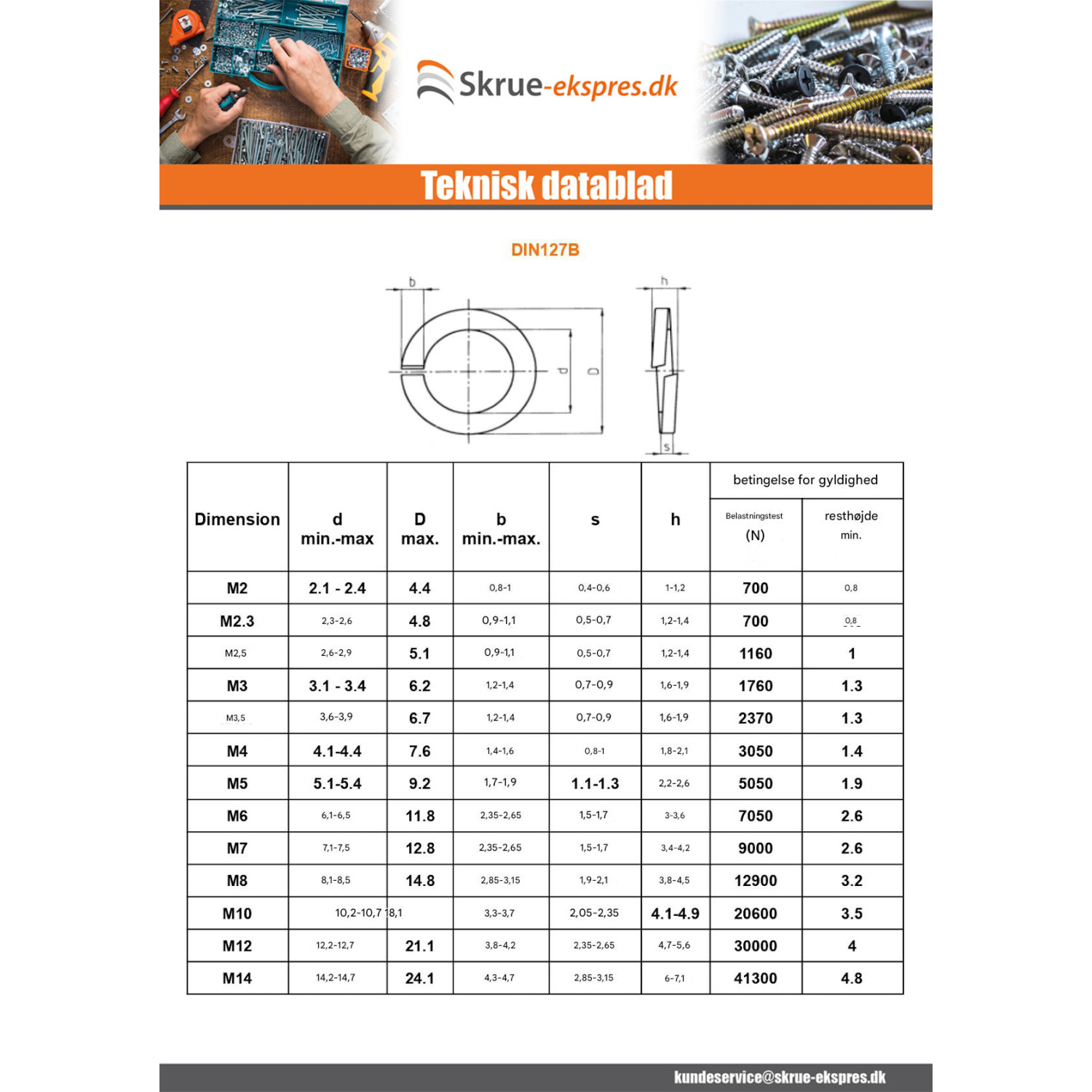

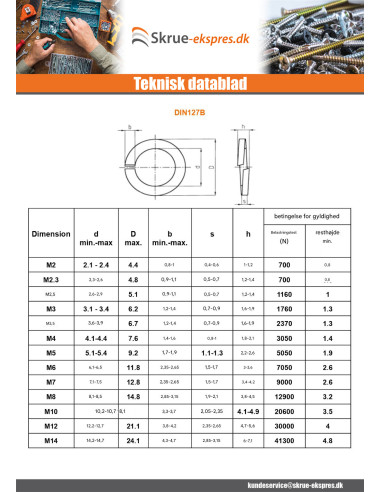

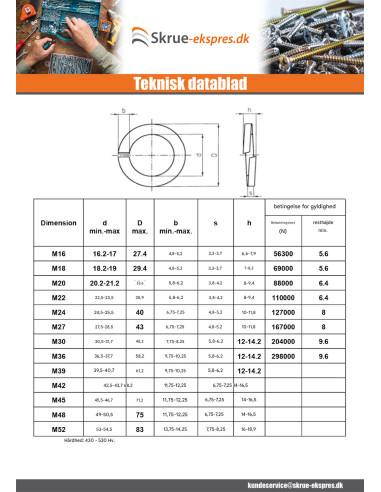

Vejledende dimensioner (i mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Indvendig diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Udvendig diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tykkelse	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

ANDRE REFERENCER : 0180000110241 RONDGRM10Z C08000055 1000281A 90010010 RW10 22030005 000333 VISS0259 OQR10WCAD RQ1890 AG1413100000 0266.1 070C000054 28670 RGR003 4120002 04189400 VB067 PR848 002068-010 00929012 002369 ar01065 VB320230 AC001096 1308470LV 3005005 QU18018 1807010 R.GROWER.10 08300175 08300175 VI942A 1002403 VIRGRZW13000 A3012543 RO4010004 9A-1507052 15782 RGR003 RD/ZL/W/10 5s0501056 0005318 270018 6000-0394 01410007 5680037 VIS0242 1460101100 1606000554 5680037 267930 01835 401354009900 RG10 X05056 41270 RD-W10 963577 1020020004 0002856 52710300 RGR-10Z 5454 0C88589900 5454 W10 203611 25515M10AZ 0044 44 V24.10 1807010 VSRON.GRO10 4107 KGO1277661 01127536 RG10 05223 VISSERV025 3236 A0001781 A.12.10.0206 123005006 123005006 0005318 05223 236852 M408 AN 4043101 9908074 MP022077 RZG10 2005800000 C09RONGROWER PMM0356 1004064 VRW10 ARLLAC152 71IROND009 300008 0603010 ROW10ZB RW10 056077 ROND10GROWER 6620034 1002403 7161030 LN03 26 RONW10Z 1929 2201935 0300451001 0300451001 5680037 2204.088 P004081 VIS279 RDL/10WZ FRONGW DS002010 0300451001 OBRGZ10 5680037 M3315 110335 30068 4105083 40300016 03T007 2701100000 R 287222 ZRONDFENDM10 081011 W10 0S2707U A3012543 RZW10 270018 0005318 V012001000 12085RGR10 VI1183A 204 B5005810 2260522 51354 19010005 16-180301000 04rgz10 VI160 V012001000 519-032-6 RP05 03RONGROVERW BL22010 010452 1001129 270018 01C17060 FR0067 11715604 S102970 QARG_D10 RON10G 2351201090 0441 10 2V2110710002 251065 1699 CO83100.016 0601225 1308470LV NFE25516.001 DMRONA027 044110 BT757040010 5013406 22.083.649 235120110 ROND GROW10 B3G10 5454 604007 020.0237 v03-013 RONGRO10 1460101100 AO5834 250000044110 9830101 19985101029 044110 MP602005 225758 CA10-00232 80131010 1263428 RD000033 RON40012 100738 V012001000 3663072060494
