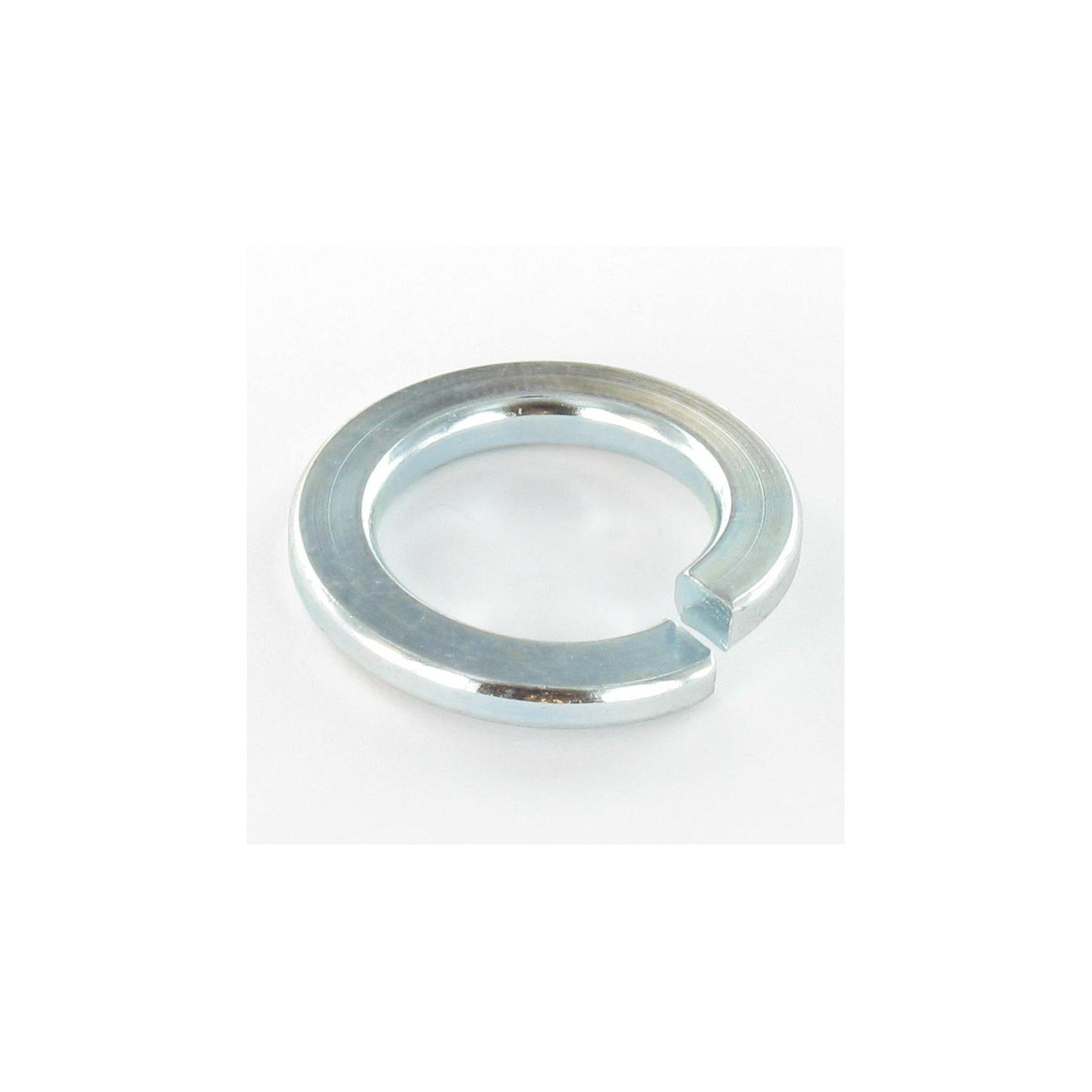

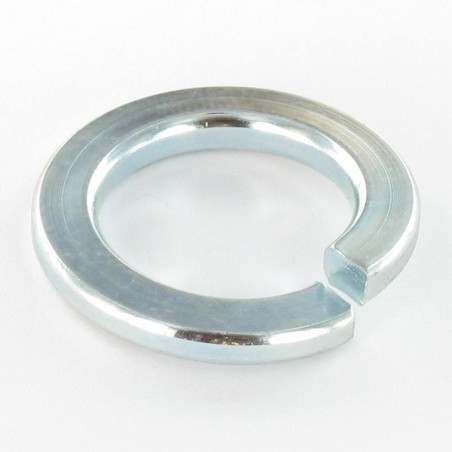

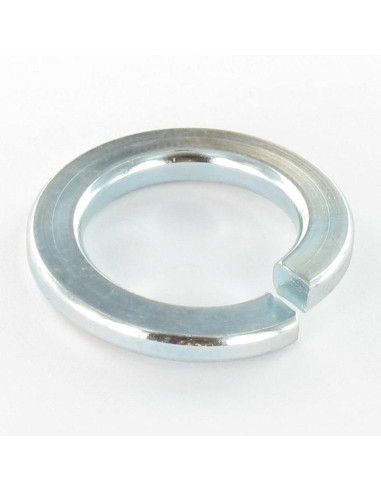

1 x Skiver Split lås for Skrue M16 elforzinket stål

Skiver Split lås for Skrue M16 elforzinket stål
Diameter = M16, Tykkelse = MM, Overfladebelã¦Gning = Zink belagt, Materiale = Stål, Norm = DIN 127 B

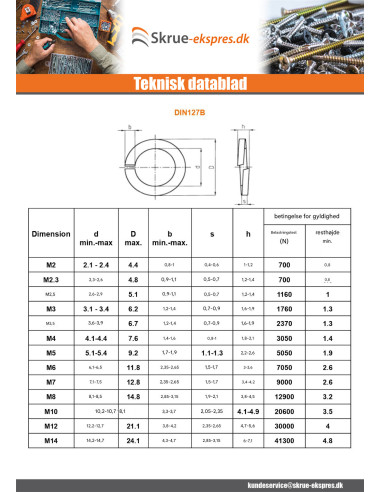

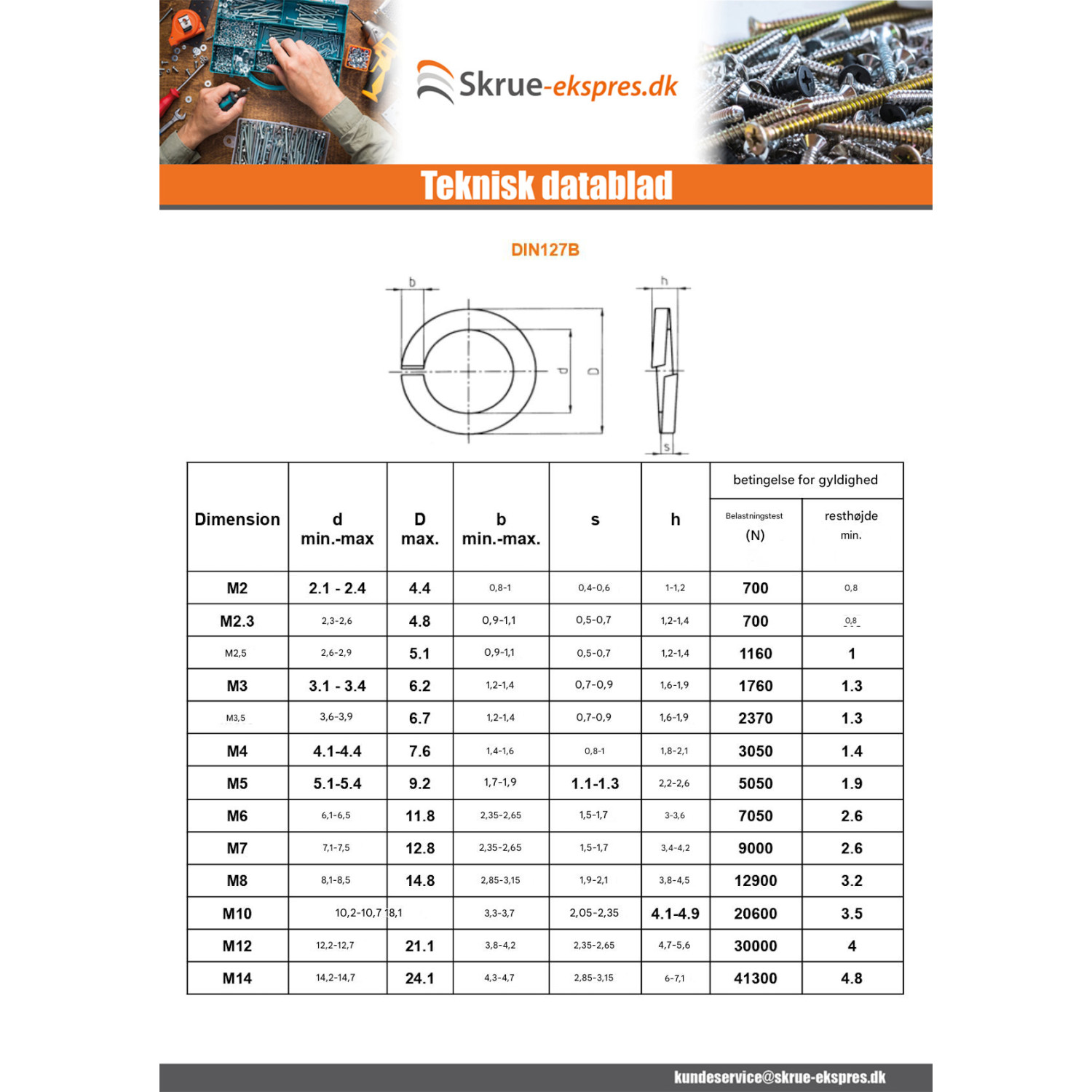

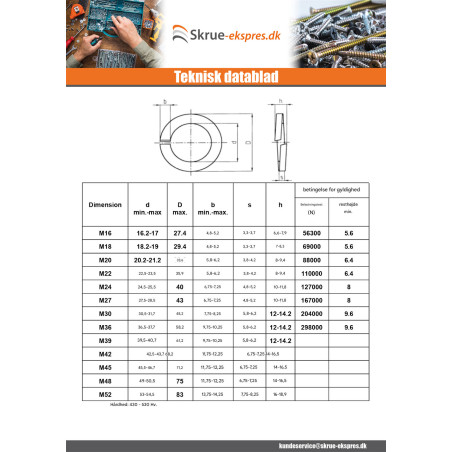

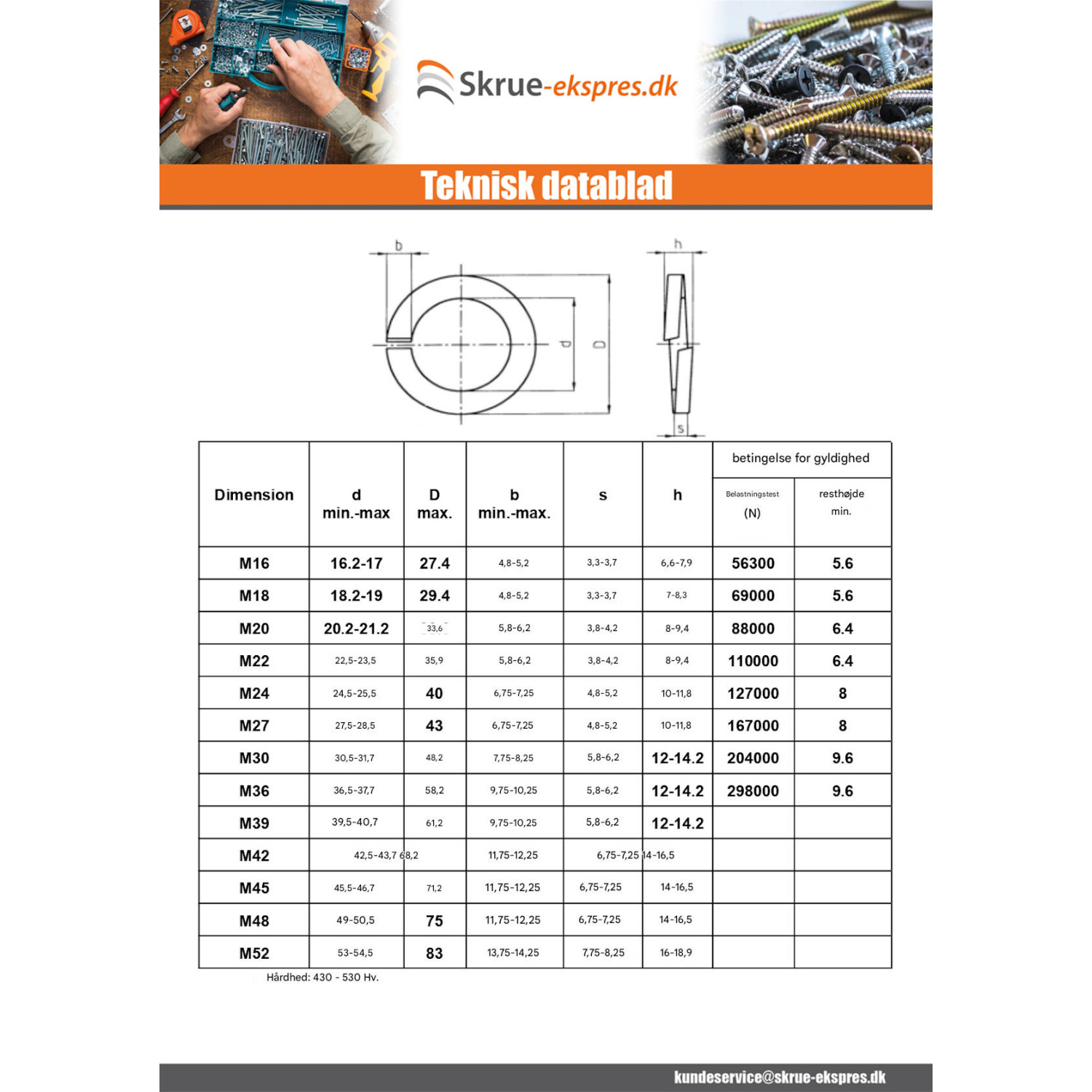

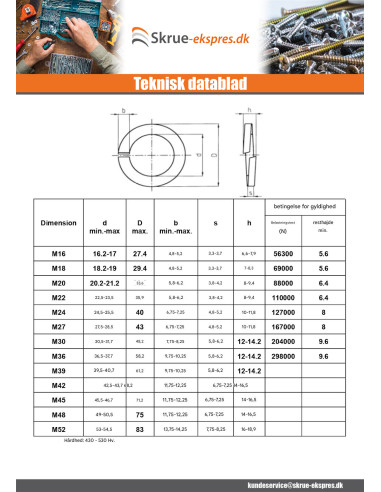

Vejledende dimensioner (i mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Indvendig diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Udvendig diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tykkelse	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

ANDRE REFERENCER : 0180000116144 RONDGRM16Z8 C08000058 3-0208 903595 90010016 01945 RW16 22030008 RONWSCSB16J RW16 0QR16WCAD RQ1920 RN*W16D127 202794 134162 385216 28672 4120005 5170179 04189616 7.800409 5170179 5170179 002068.016 A01008 3116310 3005008 1807016 2404206 RDL-GA016R3 A3014389 RDGM16 PG2404208 9A-1507055 77301..16 VIS SER 0038 601032 6000-397 5680039 1460101160 1606000557 5680039 AN 267960 01832 65138 65138 2g005989 1020020006 11320019 30816045 RONZU16Z W16 0067 208 1807016 37000.160.00 106.2 KGO1277961 01127490 R140595 36031600 0BRGZ16 RG16 123005009 123005009 0006874 57005805 3-0208 236855 AN V012001600 9908068 RZG 16 C09RONGROWER PMM0410 202794 ARLLAC150 300011 CSOP015552 RW16 6620037 RONDELROWER1 LN03 25 RONW16Z 2201938 5680039 150310 OBRGZ16 5680039 4105086 RW16 03T010 701327 201540 12762 0002837 w16 A3014389 RZW16 270078 12085RGR16 208 B5005816 19016005 122025040 16-180301600 RDL-GA016R3 BORBGR16 V012001600 519-035-6 BL22016 1001132 122025040 01C17063 b500007 FR0066 RONDELLE*GRO 1700 RONDELLE*GRO FIX-RGW-16 0601228 NFE25516.001 044116 BT757040016 RW16 5013411 22.083.652 280115s ROND GROW16 40203000 5457 V03-016 RONGRO16 903595 1460101160 313.00.16 10200024 044116 225761 80131016 126328 044116 3663072060586
