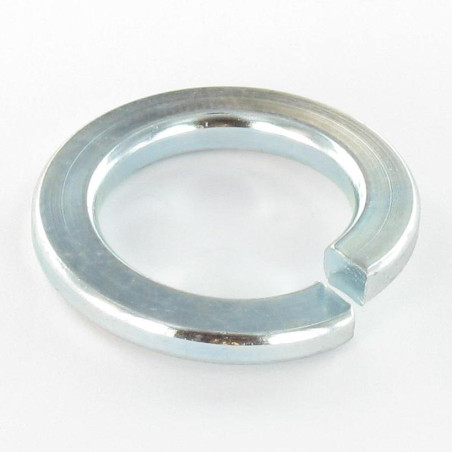

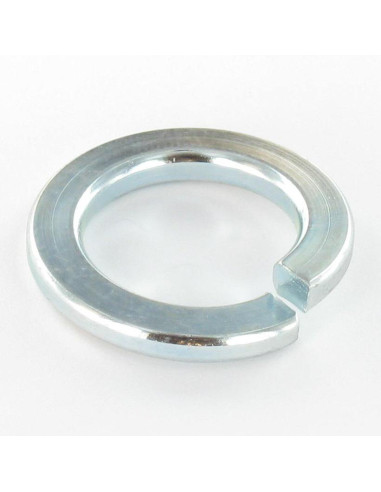

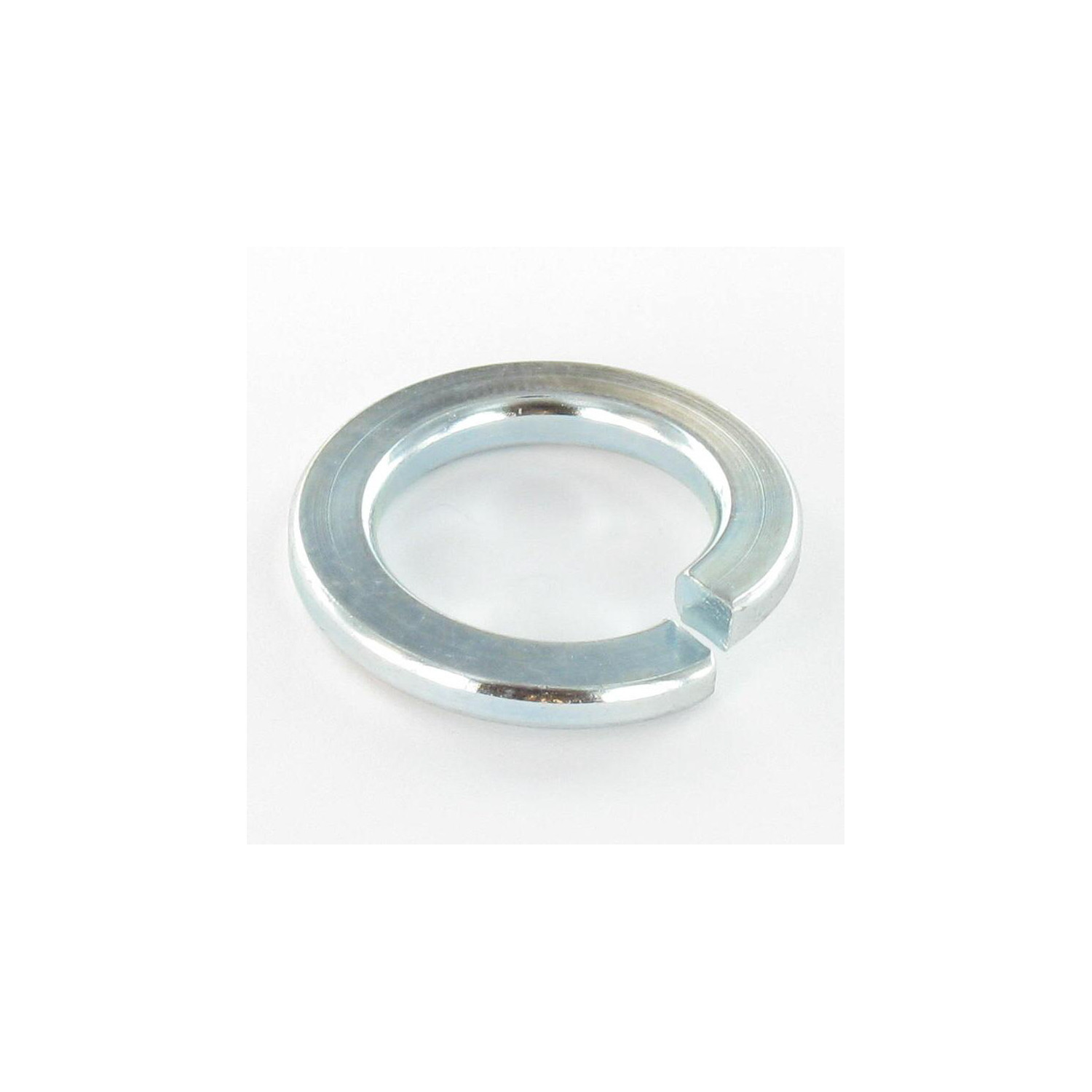

1 x Skiver Split lås for Skrue M6 elforzinket stål

Skiver Split lås for Skrue M6 elforzinket stål
Diameter = M6, Tykkelse = MM, Overfladebelã¦Gning = Zink belagt, Materiale = Stål, Norm = DIN 127 B


Vejledende dimensioner (i mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Indvendig diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Udvendig diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tykkelse	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

ANDRE REFERENCER : 0180000106329 RONDGRM6Z8 YRONGRO06Z 1005061 V01200600 6204566 22030003 RONDELLEGROW 070C000053 KACC 187A 04152406 20647 VB320200 3005003 1807006 4 1002203 ACH0371 MA300038 5s0501046 270009 6000-0391 ZQROW6AZ VIS0065 1460101060 VIS0519 267910 1408015090 01834 401352009900 1511-100006 41272 2G005904 632000600005 065054 FVISRON006 ROGROWZI06 RGR-06-Z q084579900 Y98392 W06 203609 RZGROWER06 199 1807006 W1-606300 AN 509503 123005004 236850 AN V012000600 9908077 001305 MP022087 501814 RZG06 M00559 001305 99133075 2005780000 PMM1283 1004062 VRW06 71IROND015 300005 1FA703541D 1002203 LN03 29 2201933 0300450601 0300450601 2204.081 1351104 P004516 VIS106 RGW+ RGG6 RONDW06ZG 0300450601 110333 11616 4105081 42106 022200 RONDROWERZIN KACC 187A 03T005 ZRONDEFENM6 RON06GA 0103-9405 W6 0S2705S A3012541 RZW6 270009 V012000600 243 B500586 KACC 187A MPVIS00288 19006002 WCR025515Z RGM6 RONCR6 0441 6 04RGZ06 V012000600 53142 519-030-6 MPVIS00288 01C17058 225303 52403 11715605 QARG_D6 RON06G 2351201050 808631 01834 1FA703541D CO83100.014 0601223 0059006 NFE25516.000 04416 BT757040006 22.083.645 B59.27382 ROND GROW06 6204566 0441 06 5452 604003 020.0235 1460101060 9591788 04416 AN 225756 001305 CA10-00237 80131006 RD000034 V012000600 3663072060456
