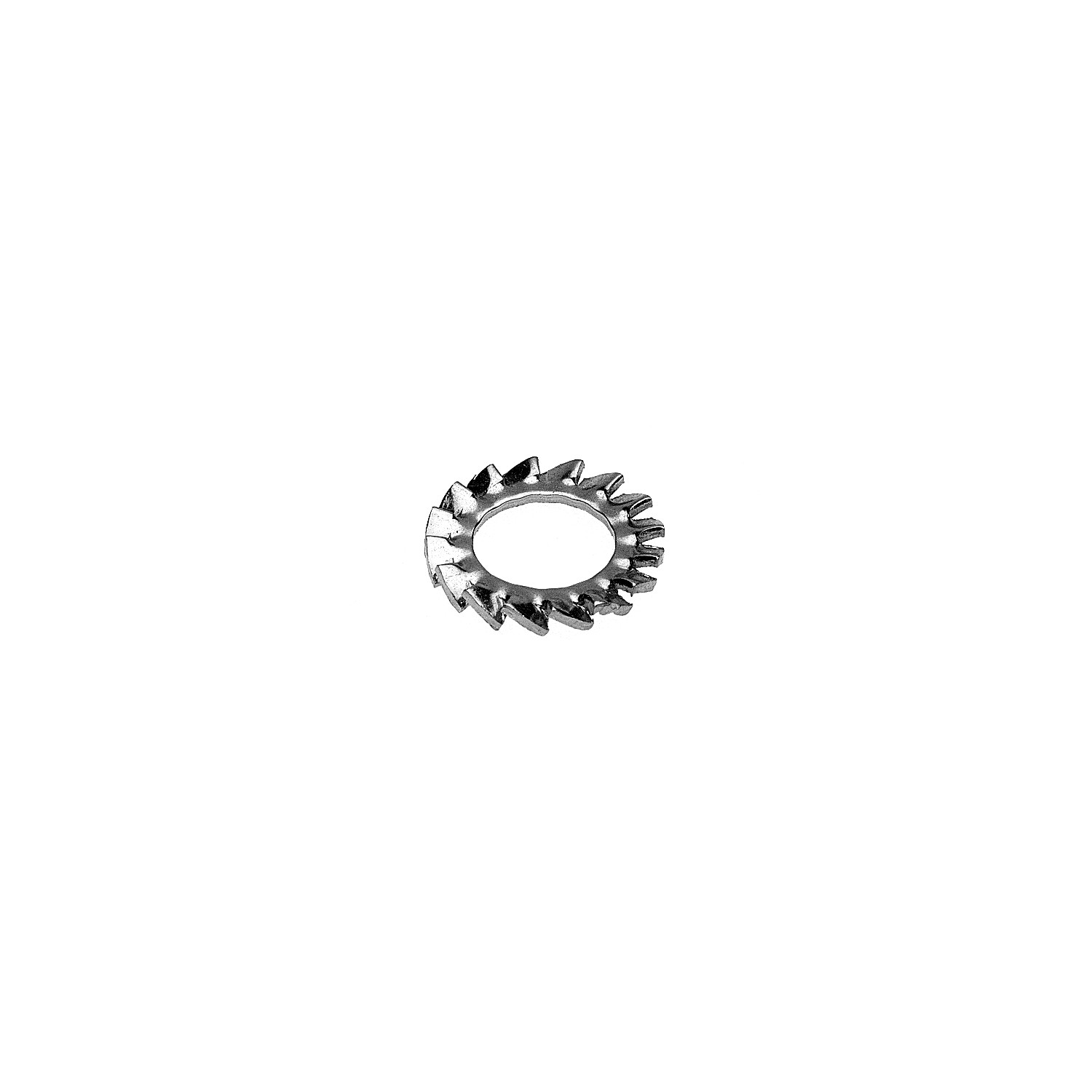

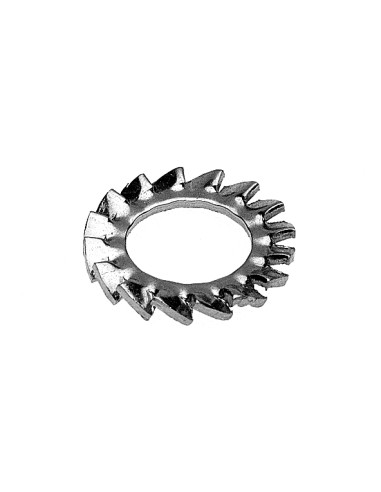

1 x Låseskiver Externe tænder AZ M16 elforzinket stål

Låseskiver Externe tænder AZ M16 elforzinket stål
Diameter = M16, Tykkelse = MM, Overfladebelã¦Gning = Zink belagt, Materiale = Stål, Norm = VS-DIN6798A


Vejledende dimensioner (i mm)

Diameter	2	2.3	2.5	3	4	5	6	8	10	12	14	16	18	20	24	27	30
Indvendig diameter	2.2	2.5	2.7	3.2	4.3	5.3	6.4	8.4	10.5	12.5	14.5	16.5	19	21	25	28	31
Udvendig diameter	4.5	5	5.5	6	8	10	11	15	18	20.5	24	26	30	33	38	44	48
S1	0.3	0.4	0.4	0.4	0.5	0.6	0.7	0.8	0.9	1	1	1.2	1.4	1.4	1.5	1.6	1.6

ANDRE REFERENCER : 3617501906105 505890 155313 2VRON039 V011001600 62457 0539011 0429 16 2VRON039 BL9016 789600 789600 789600 789600 7.800386 RONDELLE 362709 00350116 R.AZ16 2RED16A 2RED16A F3873Z 51988 0534Z16326 944301 1461001160 130926 1408000048 01822 0003023 RONDAZ16 800234 0003023 0003023 065696 E18588 6798M16AZ 65074106 36011600 11704 RE16 123008009 123008009 RDE0000016 R212.016 236843 AN V011001600 MP022007 130926 300596 CO9RONDELLEE 8981570 0604016 QUROND.AC.E1 AH1020006 LN03 18 200330013000 11704 11704 523200283 11704 AJE16 4105707 700140 ROND0001 AQU3041 RZDEC16 RDE0000016 V011001600 B0078116 122030070 0VISRONEVE16 V011001600 1001117 A01329 122030070 10A07600 1-001-02-40 1692 042916 5013552 22.083.609 AN 0739 11586116 QURON023 5468 109669 1461001160 0539011 225858 V011001600 3663072060319
