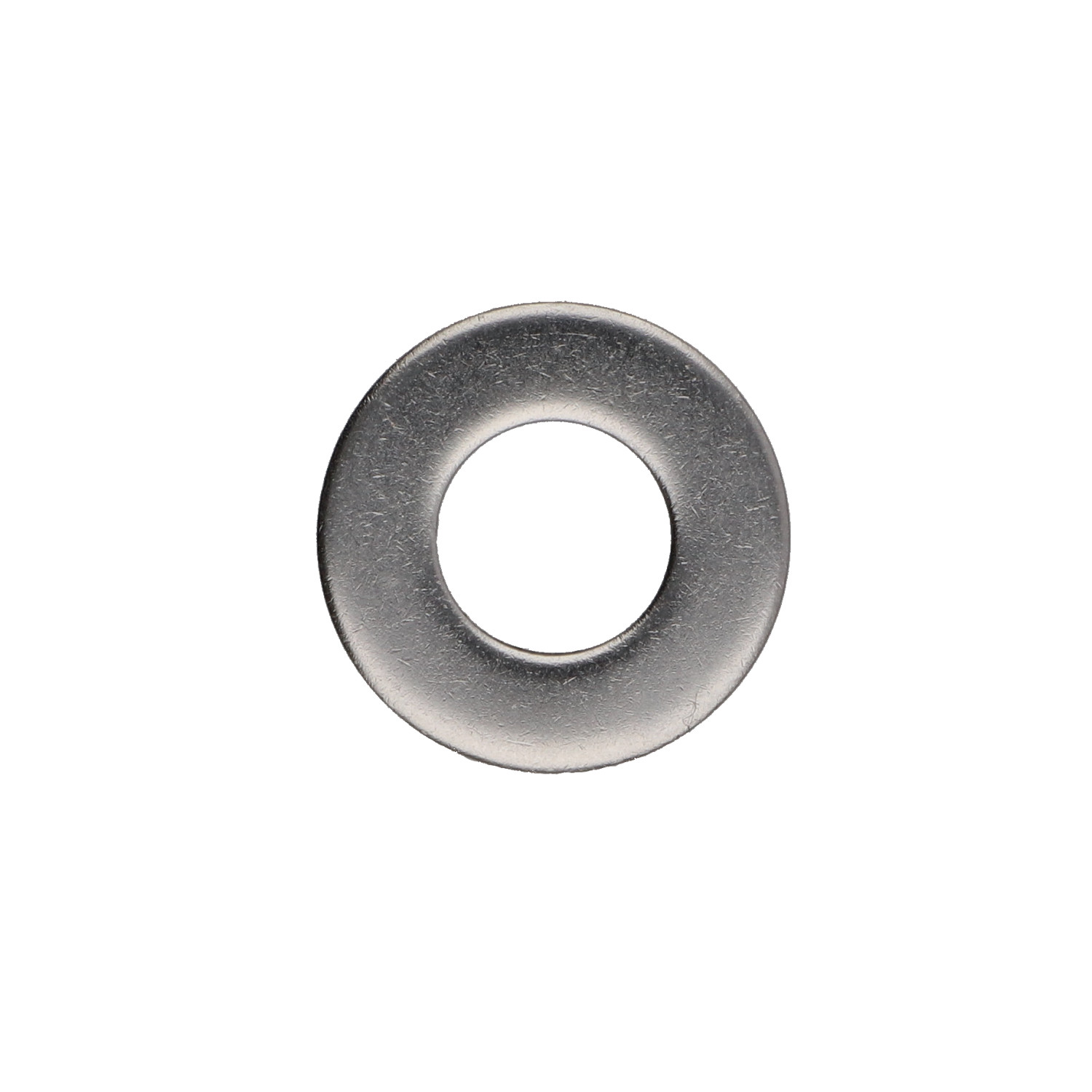

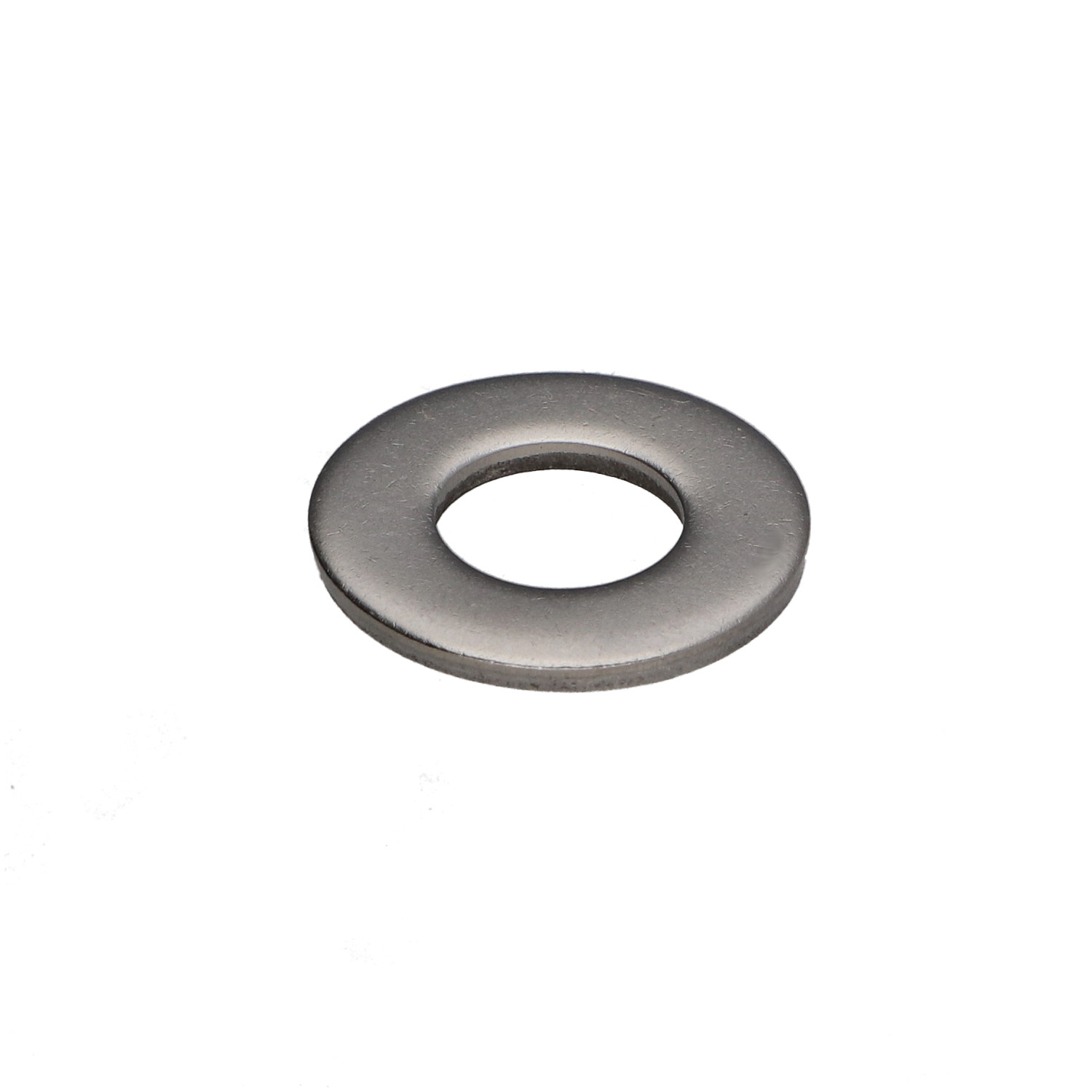

1 x Skiver flad M5X12X1 M Rustfrit stål A2

Skiver flad M5X12X1 M Rustfrit stål A2
Tykkelse = 1 MM, Sage = Rustfrit stål, Norm = NFE 25513,VS-NFE25513 GRAD C

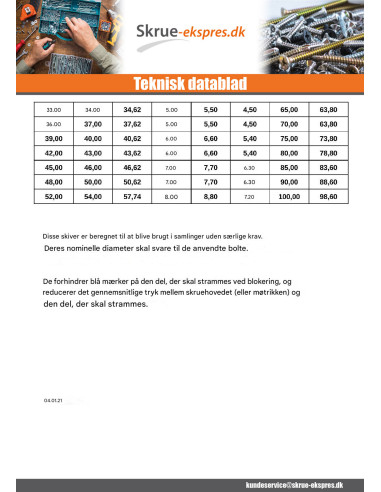

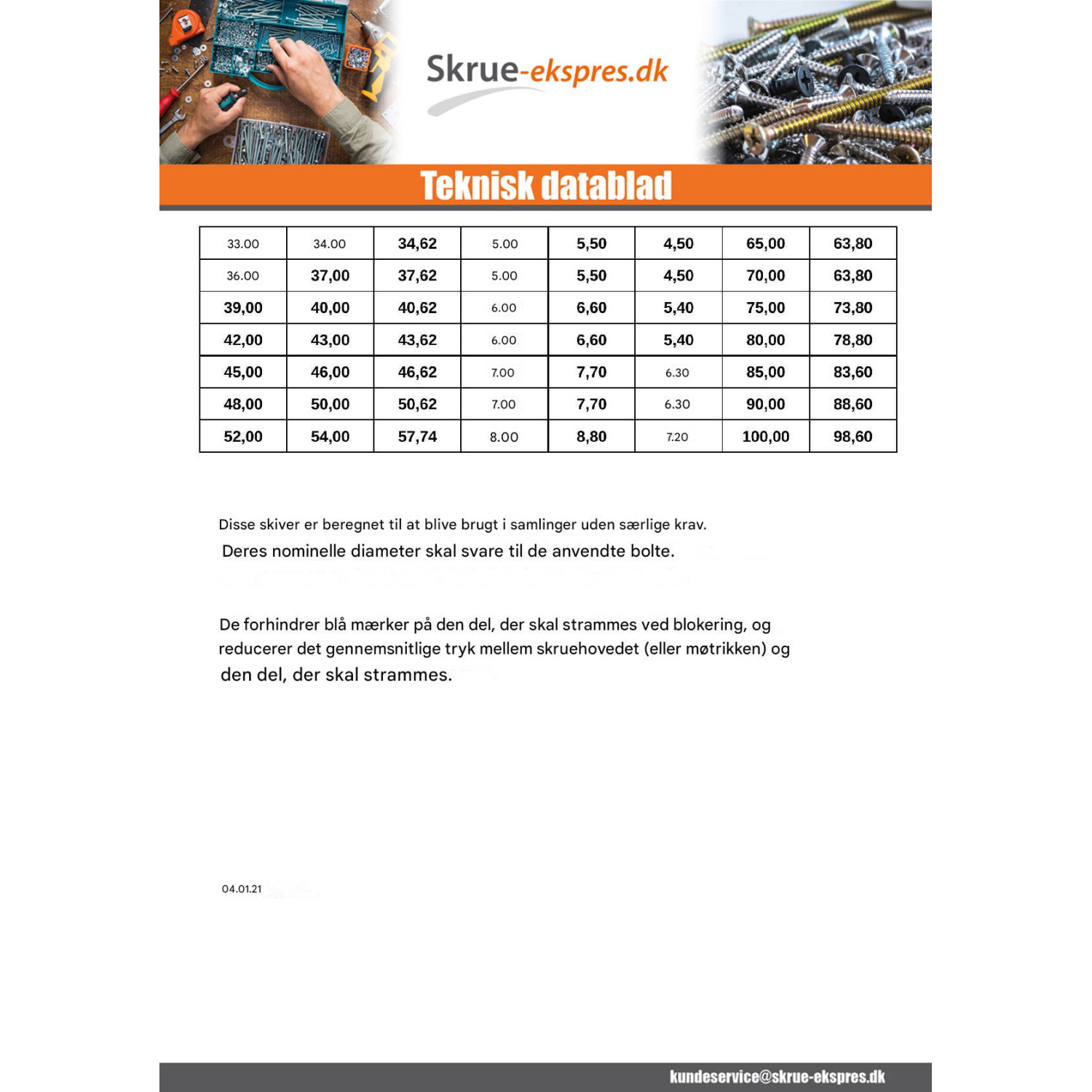

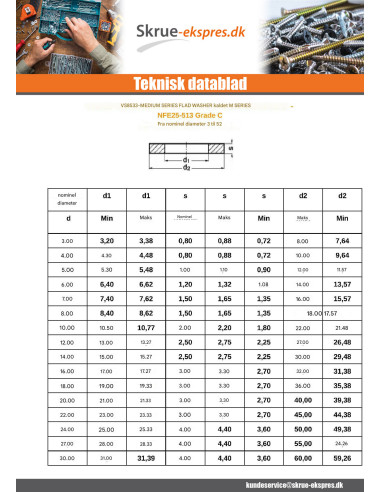

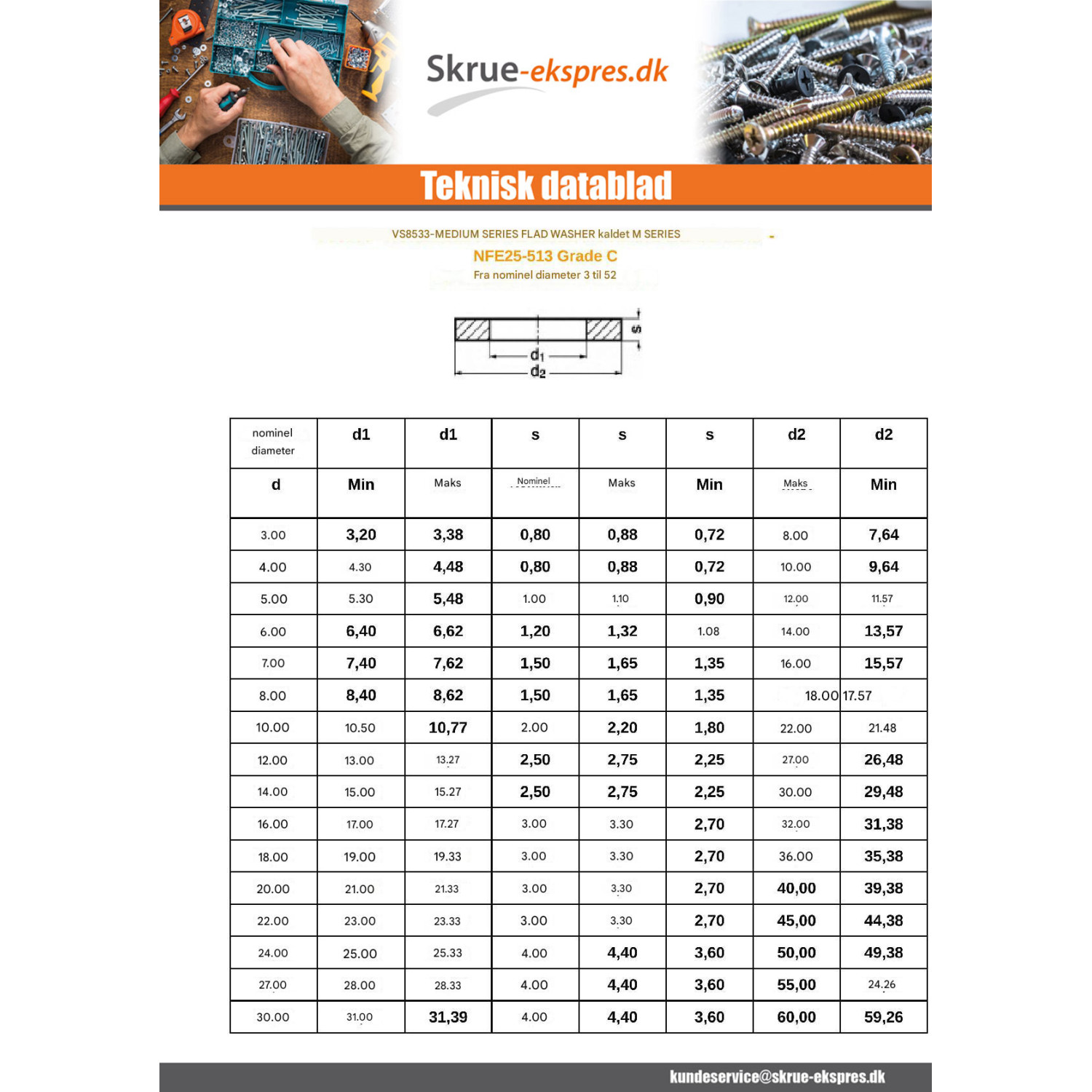

Vejledende dimensioner (i mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
Indvendig diameter	3.2	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	28	31	34	37	40	43	46	50	54
Udvendig diameter	8	10	12	14	16	18	22	27	30	32	36	40	45	50	55	60	65	70	75	80	85	90	100
Tykkelse	0.8	0.8	1	1.2	1.5	1.5	2	2.5	2.5	3	3	3	3	4	4	4	5	5	6	6	7	7	8
