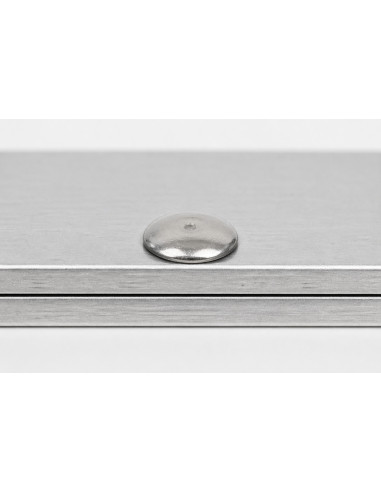

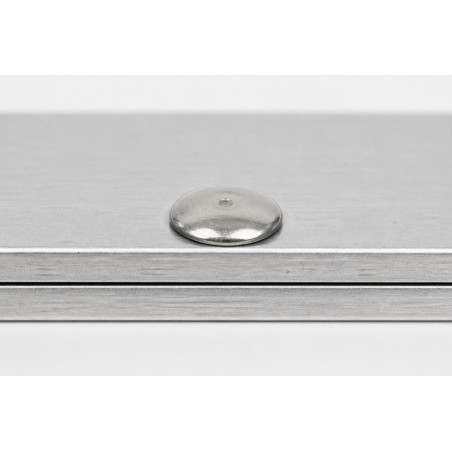

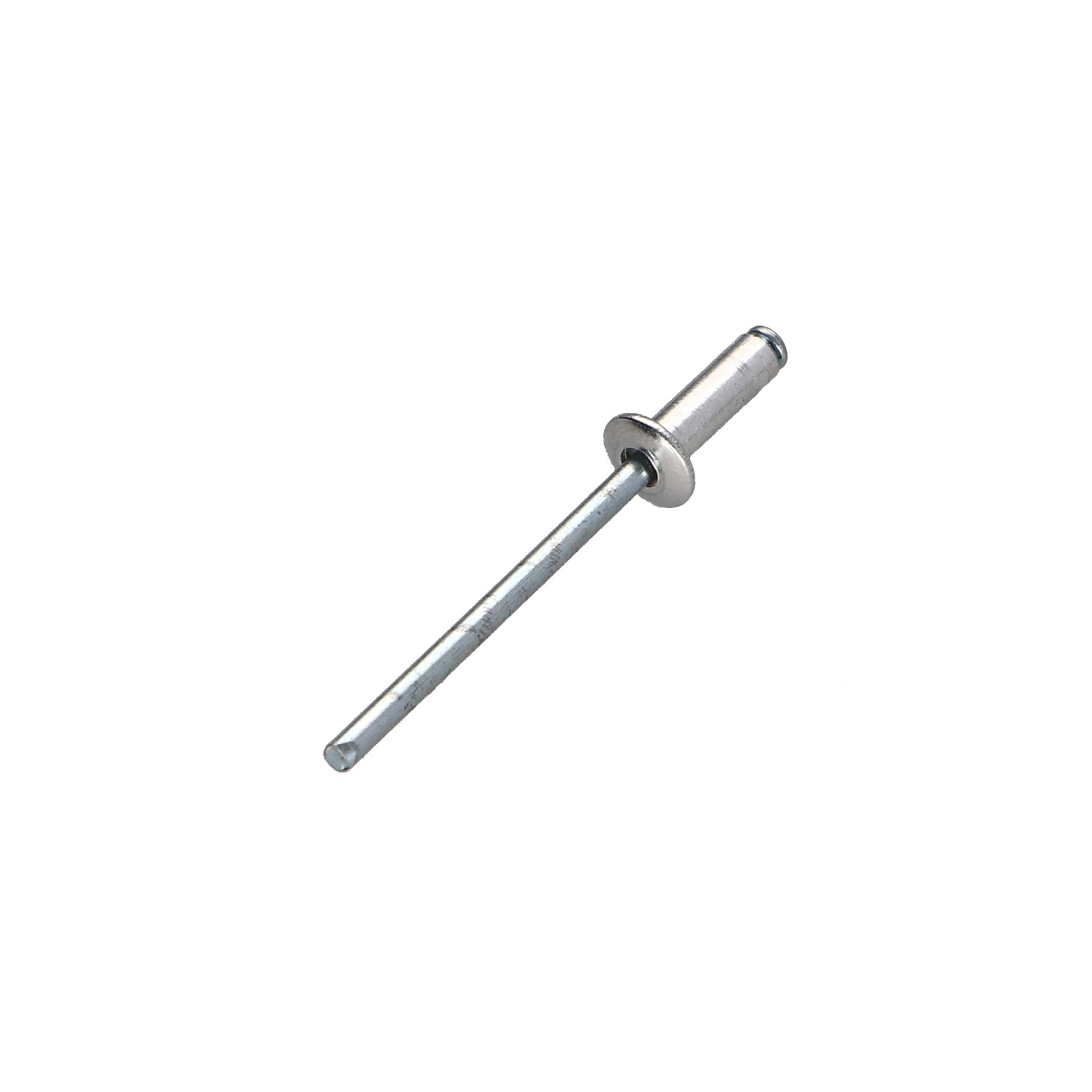

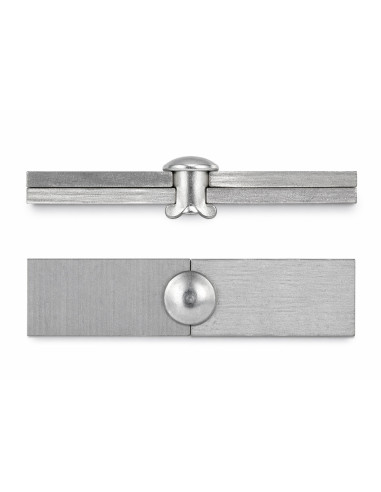

1 x Blindnitter Aluminium Tiger stål 4,8X16 Tykkelse stramning 9 to 11 Standard rund hoved ALX

Blindnitter Aluminium Tiger stål 4,8X16 Tykkelse stramning 9 to 11 Standard rund hoved ALX
Diameter = Klasse 4.8, Underproduktfamilie = Nitter BLIND STANDARDER (BRUGE GENEREL), Materiale = LEGEME Aluminium / stang Stål, Diameter Hoved = 9,5

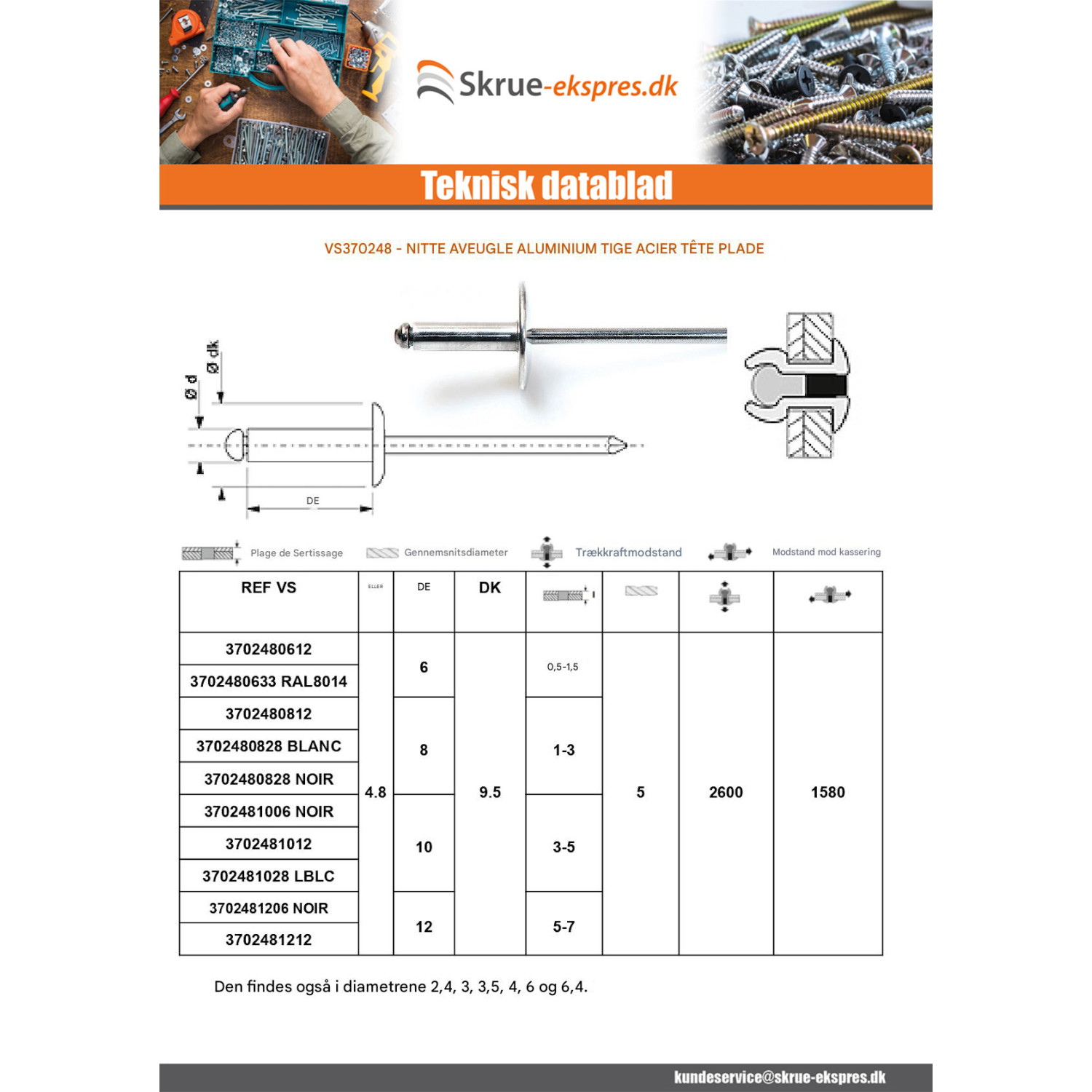

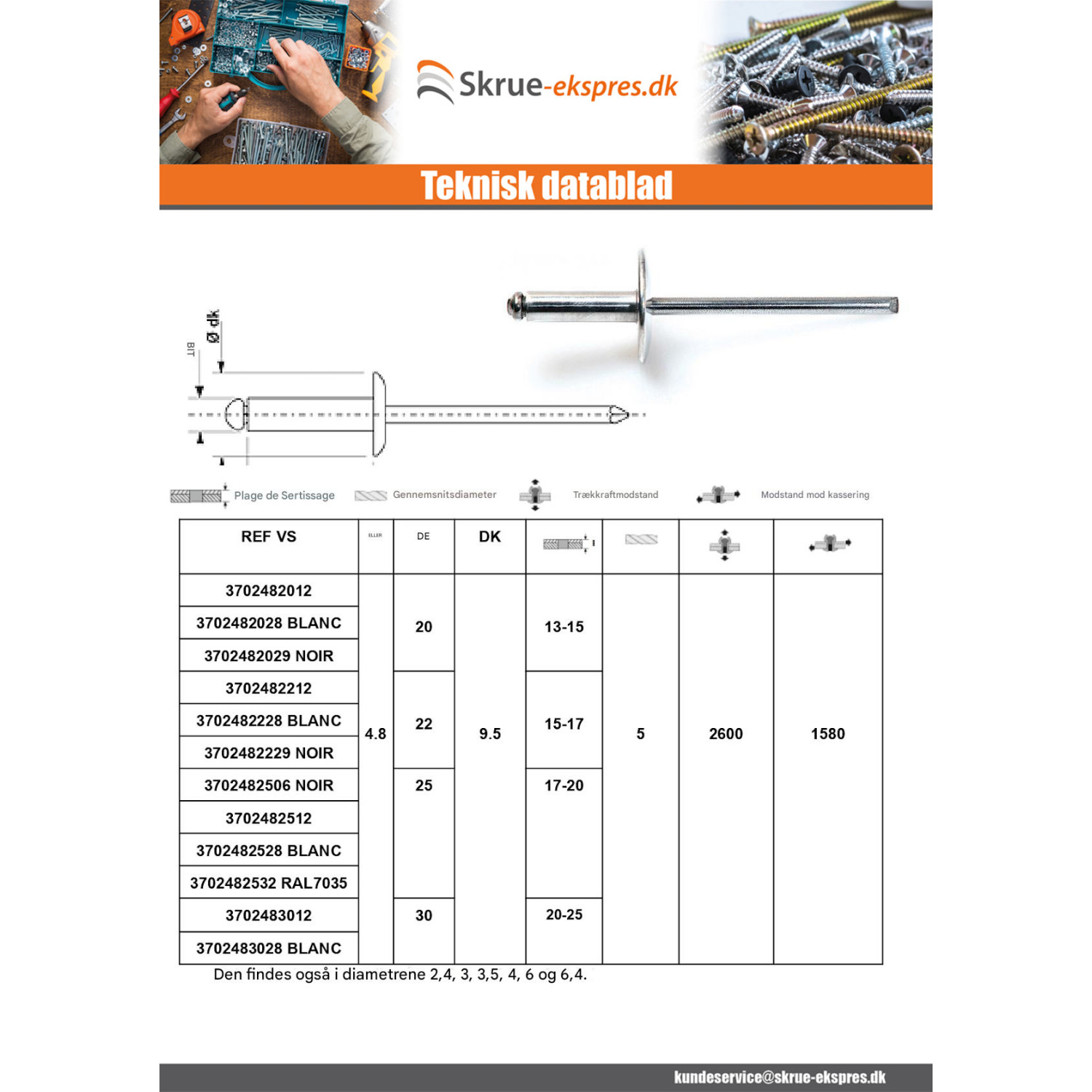

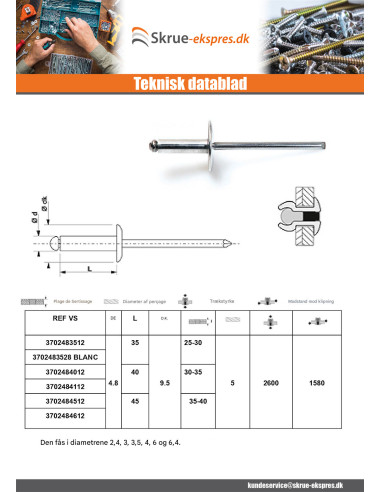

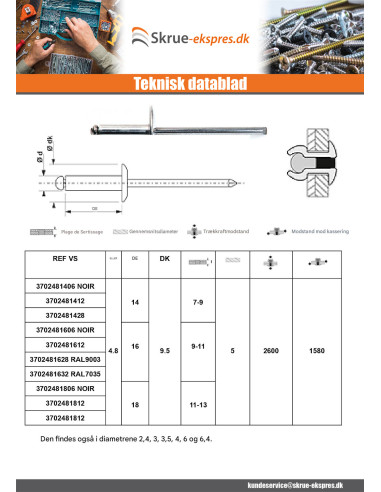

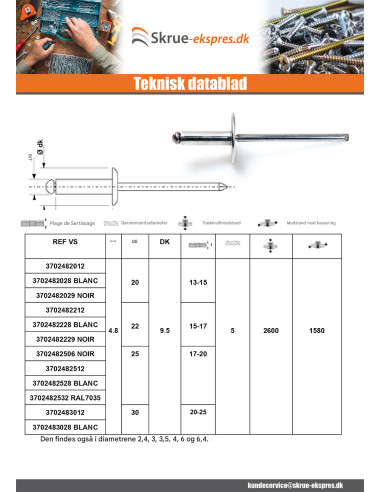

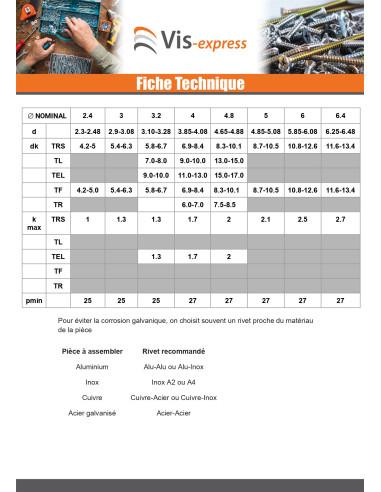

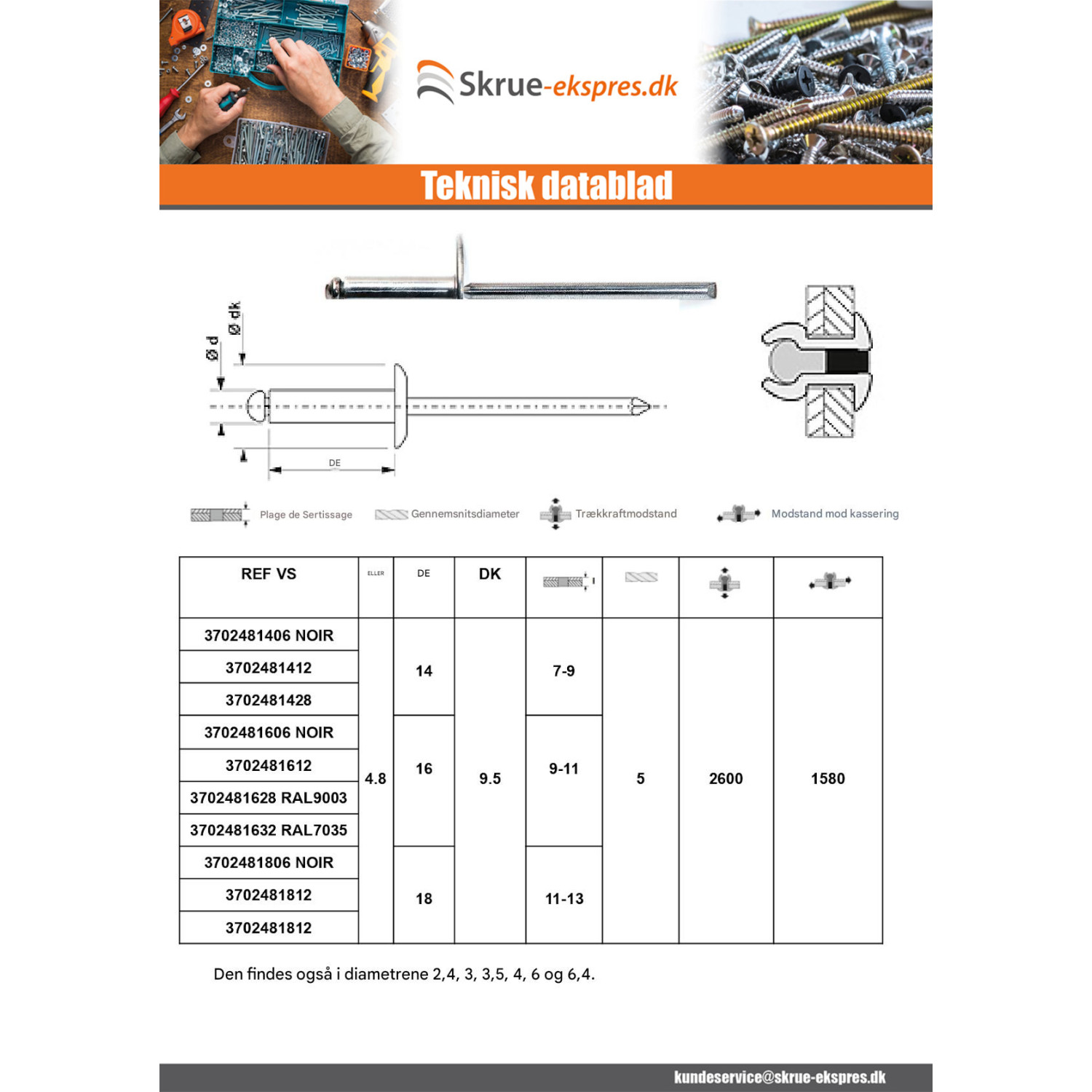

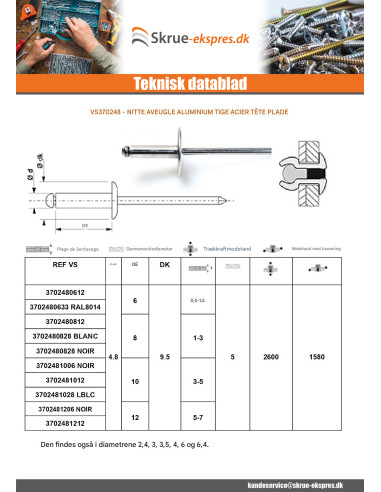

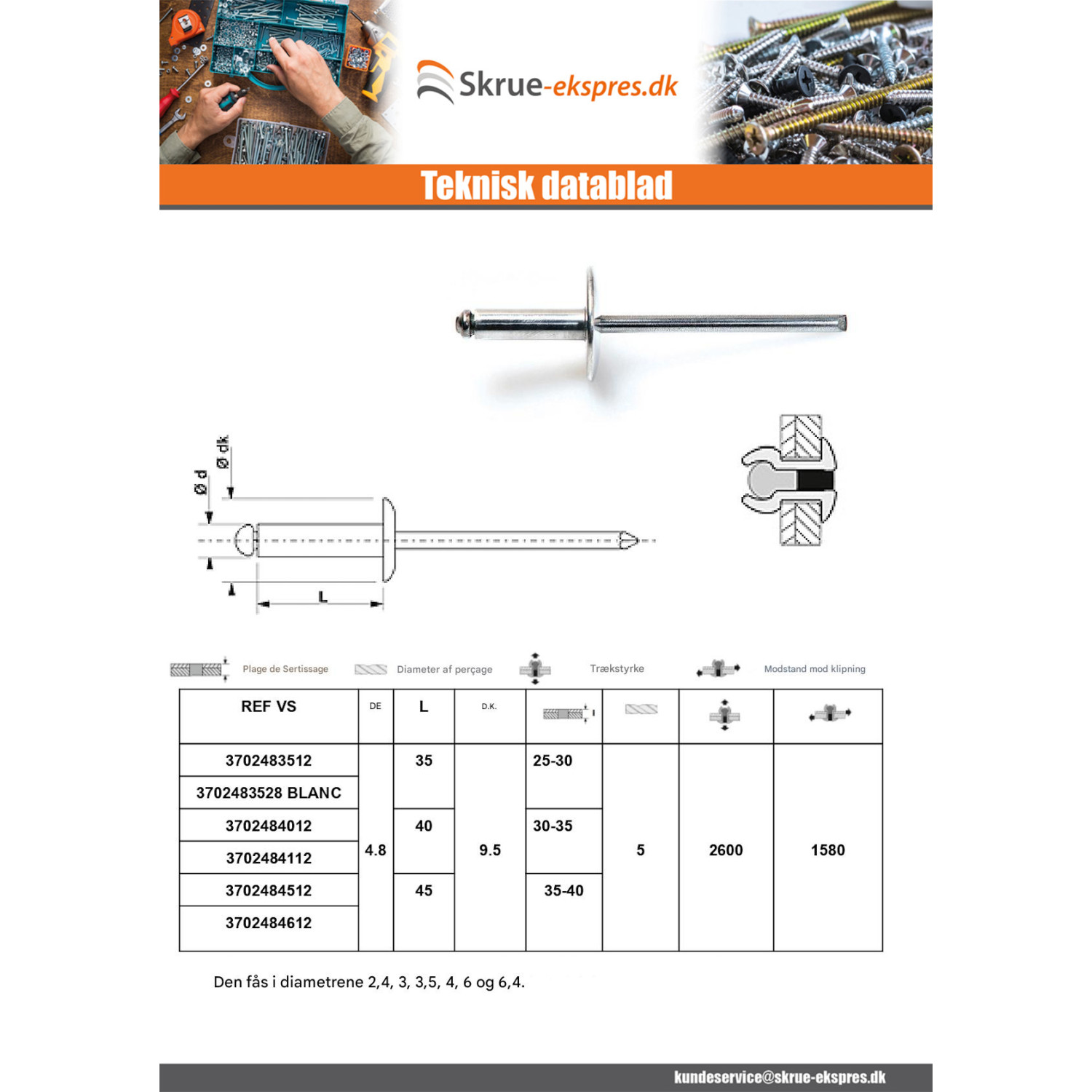

Vejledende dimensioner (i mm)

Kropsdiameter	2.4	3	3.2	4	4.8	6	6.4
Hovedets diameter	5	6	6.5	8	9.5	11.5	12
Diameter af hullet	2.6	3.2	3.4	4.2	5	6.2	6.6
resistance a la traction	500	800	1000	1600	2600	3800	4600
Skubstyrke	400	650	850	1300	2100	3000	3500
longueur tige	25	25	25	27	27	27	27	27
