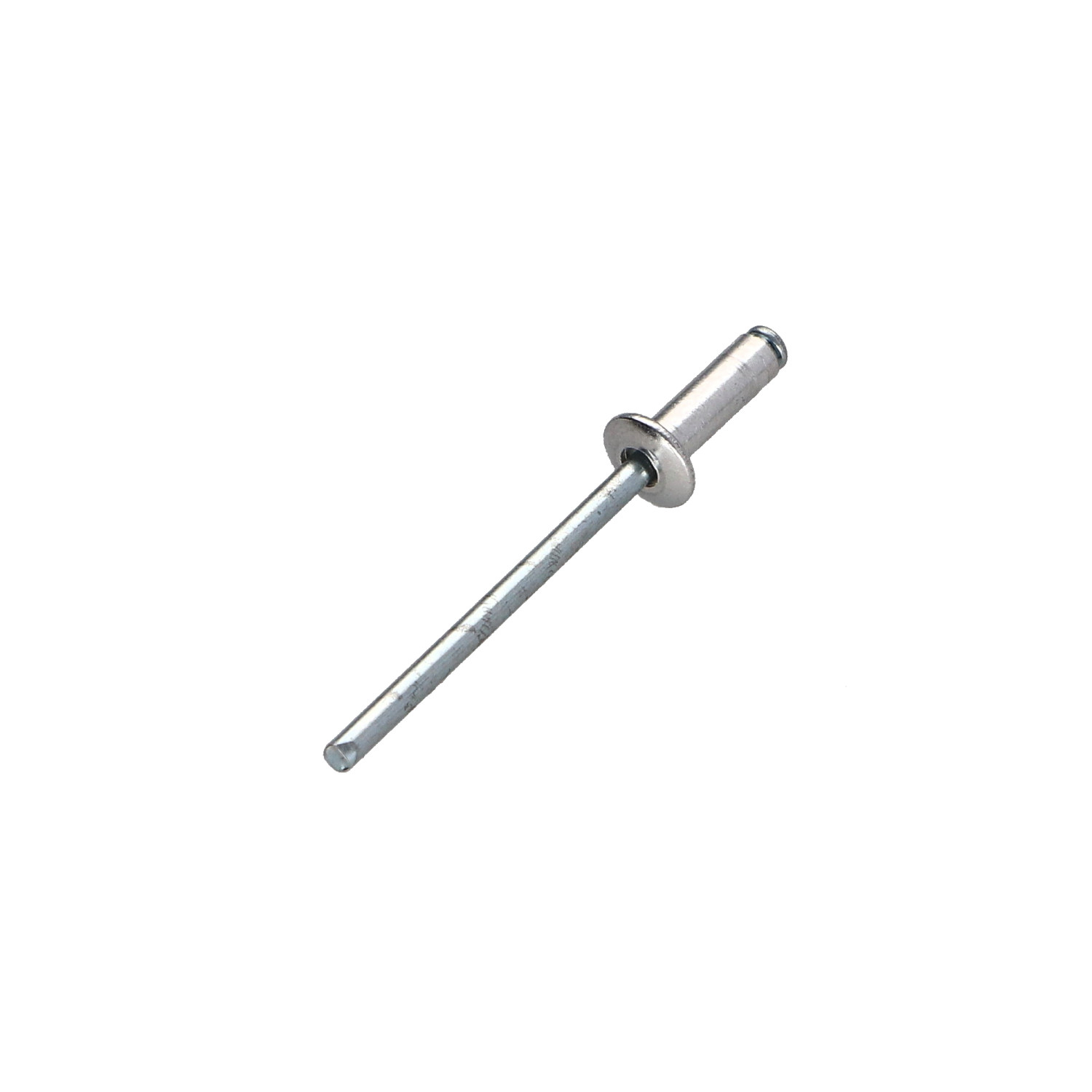

1 x Blindnitter Aluminium Tiger stål 4X10 Tykkelse stramning 4 to 6 Standard rund hoved ALX

Blindnitter Aluminium Tiger stål 4X10 Tykkelse stramning 4 to 6 Standard rund hoved ALX
Diameter = 4, Underproduktfamilie = Nitter BLIND STANDARDER (BRUGE GENEREL), Materiale = LEGEME Aluminium / stang Stål, Diameter Hoved = 8

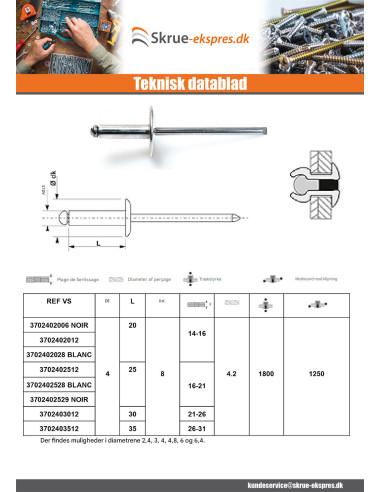

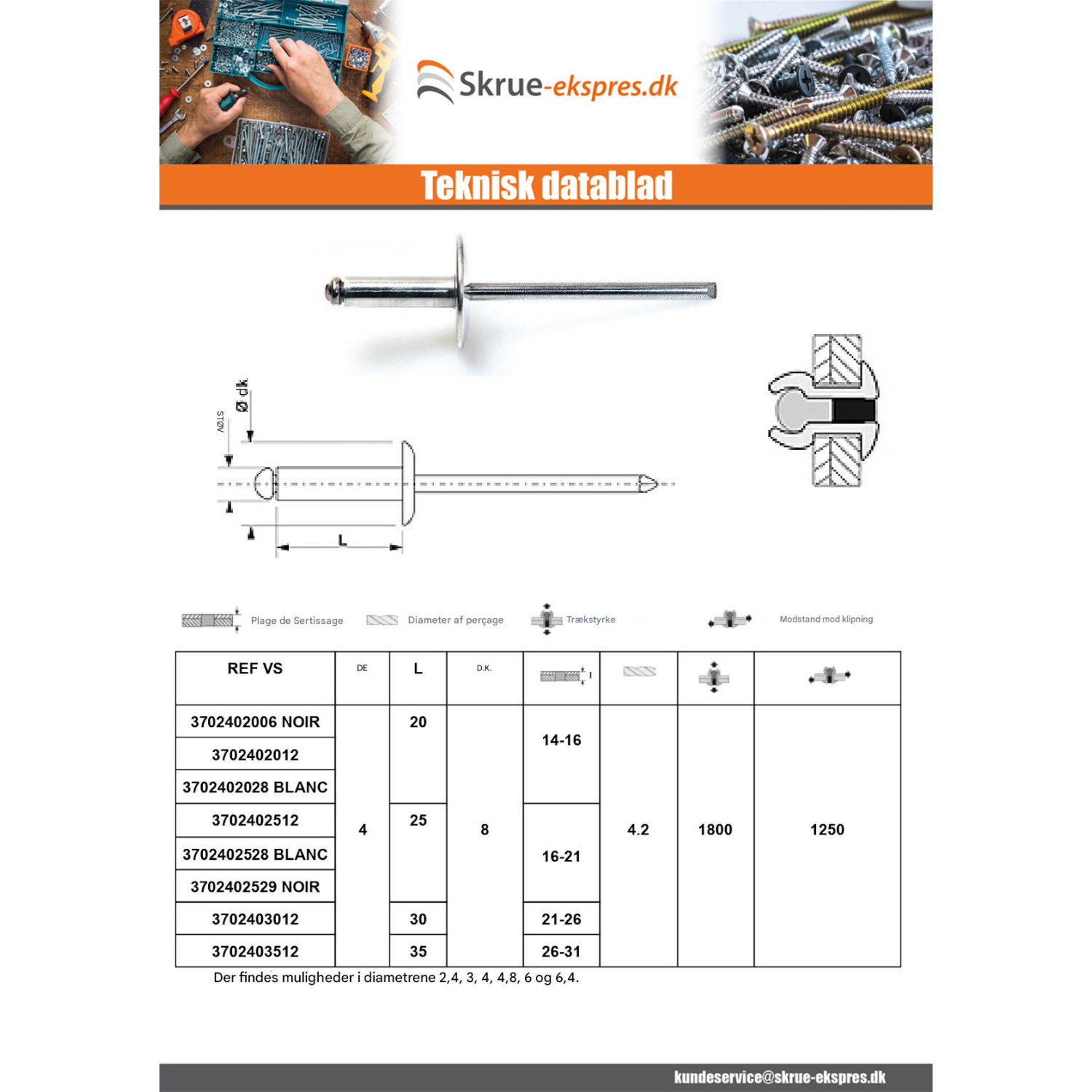

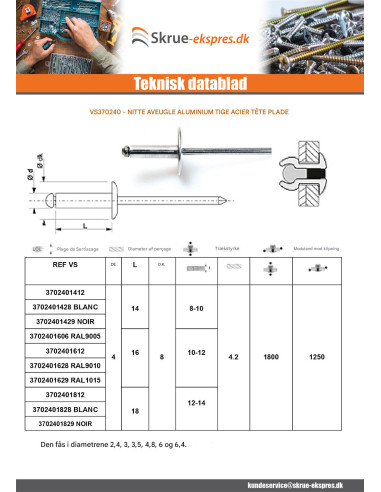

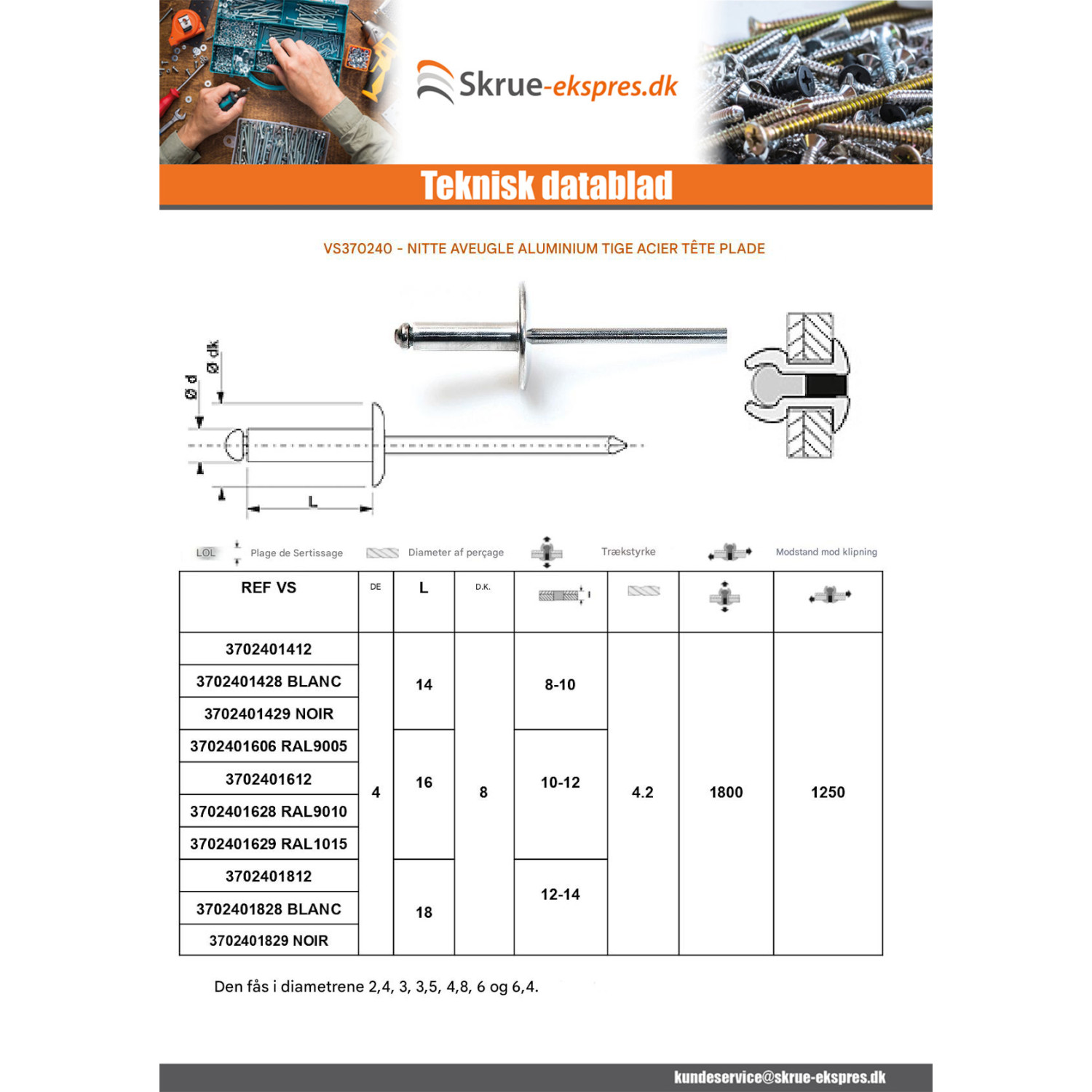

Vejledende dimensioner (i mm)

Kropsdiameter	2.4	3	3.2	4	4.8	6	6.4
Hovedets diameter	5	6	6.5	8	9.5	11.5	12
Diameter af hullet	2.6	3.2	3.4	4.2	5	6.2	6.6
resistance a la traction	500	800	1000	1600	2600	3800	4600
Skubstyrke	400	650	850	1300	2100	3000	3500
longueur tige	25	25	25	27	27	27	27	27

ANDRE REFERENCER : 103140101 RIVTP4*10AL/ 1349 A300104001 176 43287 RIV4X10 RIV-ALU-4*10 4747358 MP1349 RIVD4X10TNA- FIXQ016 RATP410 700205 070C000142 RIV4X10ALAC 3VARI4010 9A-1508023 VRTPZ040100 VIS113 RPOPM4X10TPA RA/AL/AC/P/4 EUVR04A10 3858 VU02 103140101 21.300 P01155 ZQRI1410 RIVET4X10 RIVET4X10 0609410 RIVET4X10 RIVET4X10 1407019070 518004 QUIRIV000001 RIVETTP4X10A 135ALAC04010 41344 QRIV4010PL01 VISRIVET4/10 1060010001 A00000163 876109900 RIV4010 200327 PVRV00 0060 512132 90100101 990699010010 AN 3858 176 FONTES 010081 021523 2362021 AERIVET410 73446 551705 1C664383 RIV4X10 6640017 103140101 641000140105 1439 0937410 0937410 0026348 RI410 212015 2741004 478676 0937410 141548 RIAL410A 03X007 RIVE0001 RV4X10N01 CV-05-0009 POP4-10AL/AC 0847/0410 FID00370 /AN 19R04010 V001182 78722525 12022899 1010081 A01384 V001182 0977AC/04*10 CO220005 AN DMRIV0040 4747358 QRI10010 A-00413 0026348 MOIS / CDE S00211411 V08036001 4747358 53157 GGGV4060 VRTPZ040100 7690268 3663072063976
